20310

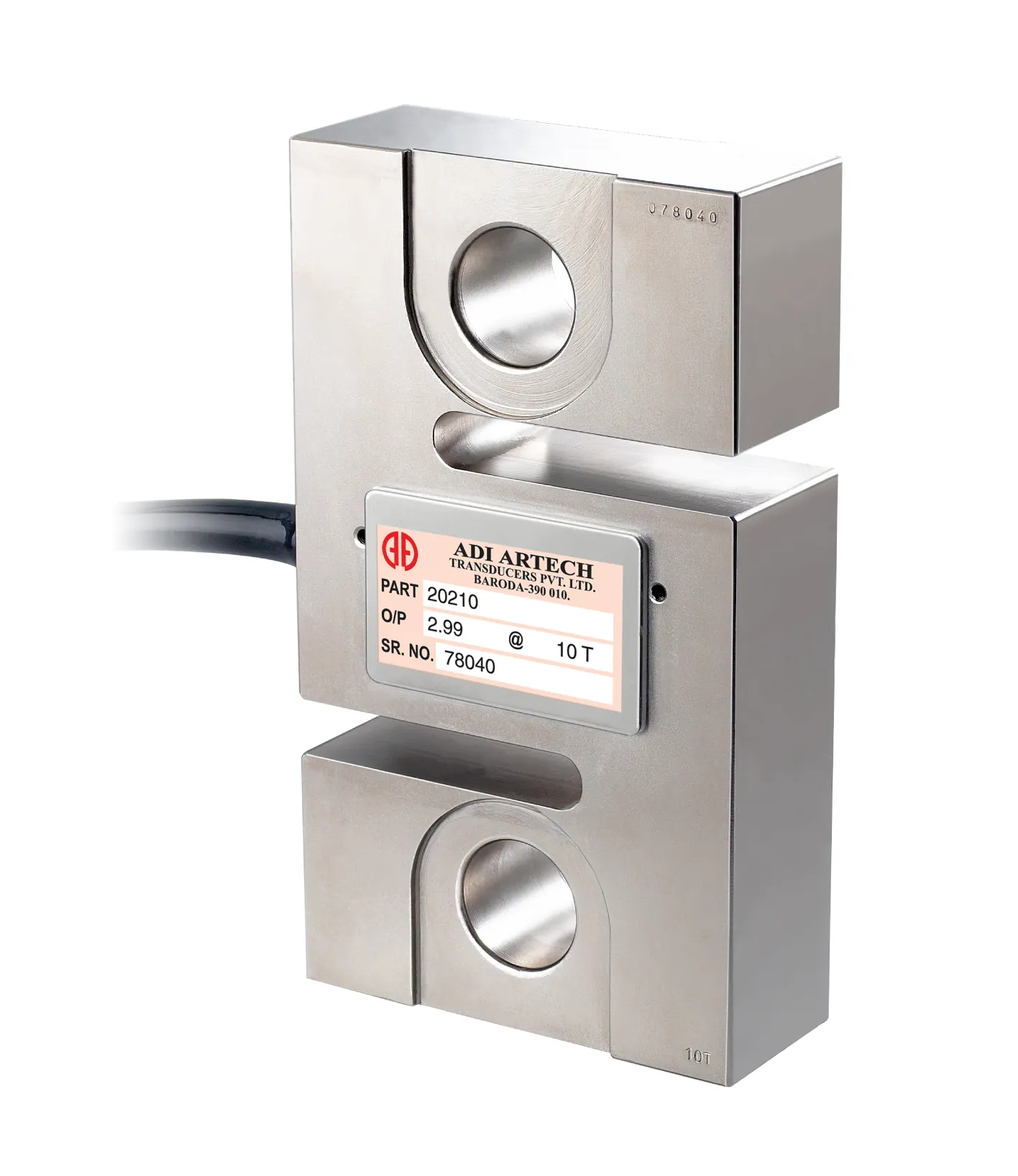

S BEAM LOAD CELL
Capacity
- 1.5, 2, 3, 5, 7.5, 10, 15, 20 TF.
Load Direction
- Tension & Compression – Universal
Description
- 20310 is CE Certified Precision Tension type Load Cell useful in Hanging type Weighing, Compressive & Tensile Testing, Process & Machine Automation and Line Tension Measurement. It is constructed from high tensile tools steel for ruggedness and harsh industrial applications. It is strain gage based Load Cell with full temperature compensation over 10 to 50C range.
Application
- Conversion of Mechanical Scale to Electronic.
- Tank, Hopper & Bag Weighing.
- Force Measurement, Tension & or Compression Dynamometer.
- Hanging & Crane Scale.
- Industrial Automation.
- Line tension measurement.
- Process & machine automations.
- Robotics.
Key Features
- CE Rated
- 1.5, 2, 3, 5, 7.5, 10, 15, 20 TF. Capacities available.
- High Alloy Tool Steel construction for resistance against shock and overload.
- Complete Environmental Protection -IP68 class- Laser Welded is available optionally.
- Standardized output (3.0 ± 0.25%) available on request.
- Can be customized to suit customer’s requirements.
- High Temperature version can be provided on request.
Technical Specifications
STANDARD CAPACITY
1.5, 2, 3, 5, 7.5,10, 15, 20 TF.
PERFORMANCE
PERFORMANCE
Non- Linearity
Hysteresis
Non-Repeatability
Creep(30minutes)
ZeroBalance
< ±0.025% FSO
< ±0.2% FSO
< ±0.1% FSO
< ±0.3% FSO
±1.0% FSO
ELECTRICAL
ELECTRICAL
Nominal Output
Excitation Voltage
Input Resistance
Output Resistance
Insulation Resistance(50VDC)
Cable Length (4 Core Screened)
10 VDC- Maximum 15 VDC
392 ± 15 Ohms
350 ± 3 Ohms
> 1000 Mega Ohms
5 Meters
3.0 m V/ V
STRUCTURE
STRUCTURE
Ultimate Overload of Rated Capacity
Safe Overload of Rated Capacity
Allowable Side Load
Deflection
Finish & Construction
Environmental Protection Class
250%
150%
50%
< 0.4 mm at FSO
Electro less Nickel Plated Tool Steel
IP 67
TEMP.
TEMP.
Compensated
Temperature
Temperature
Effect Output
Temperature
Effect Zero
10-50 °C
< 0.0015% FSO/ °C
< 0.0020% FSO/ °C
OPTIONS
OPTIONS
Mounting Accessories
Digital Version
Compatible Instrument
WM-IX
Digital Output
DLC-6M, DLC-6, Jumbo Display
