50310

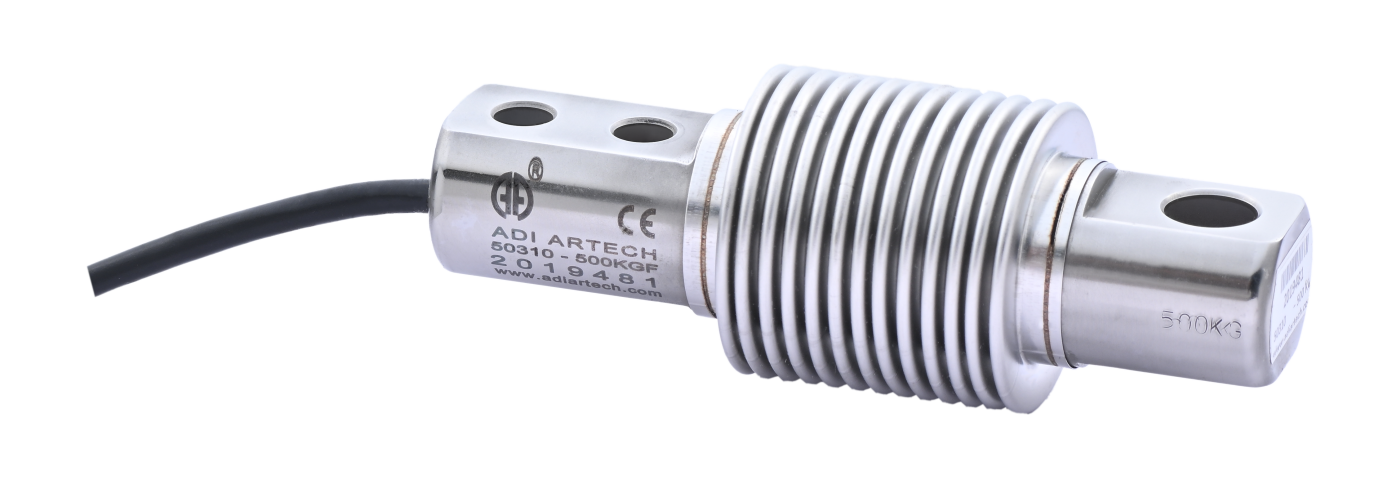

Beldin Beam Load - Bending Beam Bellow Type Hermatically Sealed Load Cell
Capacity
- 0-10 Kgf to 0-500Kgf
Load Direction
- Tension & Compression – Universal
Description
- CE Certified 50310-is low profile round bending beam load cell for bag and check weighing. It is constructed from SS 17-4 ph for providing protection against corrosion. It is strain gage based with full temperature compensation over 0 to 50C. It is laser welded hermetically sealed with SS Below.It is suitable for Food, Pharmacy and corrosive Chemical Industries.
Application
- Check Weighers
- Tank & Hopper Weighing
- Batching & Packaging Machines
- Bag Weighers
- Bench Scale
- Floor Scale
Key Features
- CE Rated : 0-10 Kgf to 0-500Kgf capacities are offered.
- Complete environmental protection for gage area is provided for IP-68 protection class with laser welded SS below.
- Other capacities can be customized as per requirements.
Technical Specifications
STANDARD CAPACITY
10, 20, 30, 50, 100, 200, 300, 500 Kgf
PERFORMANCE
PERFORMANCE
Non- Linearity
Hysteresis
Non-Repeatability
Creep(30minutes)
ZeroBalance
Nominal Output
< ±0.05% FSO (Full Scale Output)
< ±0.01% FSO
< ±0.02% FSO
< ±0.03% FSO
±1.0% FSO
2.0 m V/ V
ELECTRICAL
ELECTRICAL
Input Resistance
Output Resistance
Insulation Resistance (50 VDC)
370 ± 15 Ohms
350 ± 2 Ohms
> 1000 Mega Ohms
STRUCTURE
STRUCTURE
Safe Overload
Of Rated Capacity
Deflection
Finish & Construction
IP Rating
150%
< 0.4mmatFSO
Stainless Steel 17.4 PH
IP-68
TEMP.
TEMP.
Compensated
Range
Temperature
Effect Output
Temperature
Effect Zero
0º to 50ºC
< 0.005% FSO/ °C
< 0.0010% FSO/ °C
OPTIONS
OPTIONS
Compatible Instrument
DLC-6M, DLC-6, Summing Junction Box
