90710-B

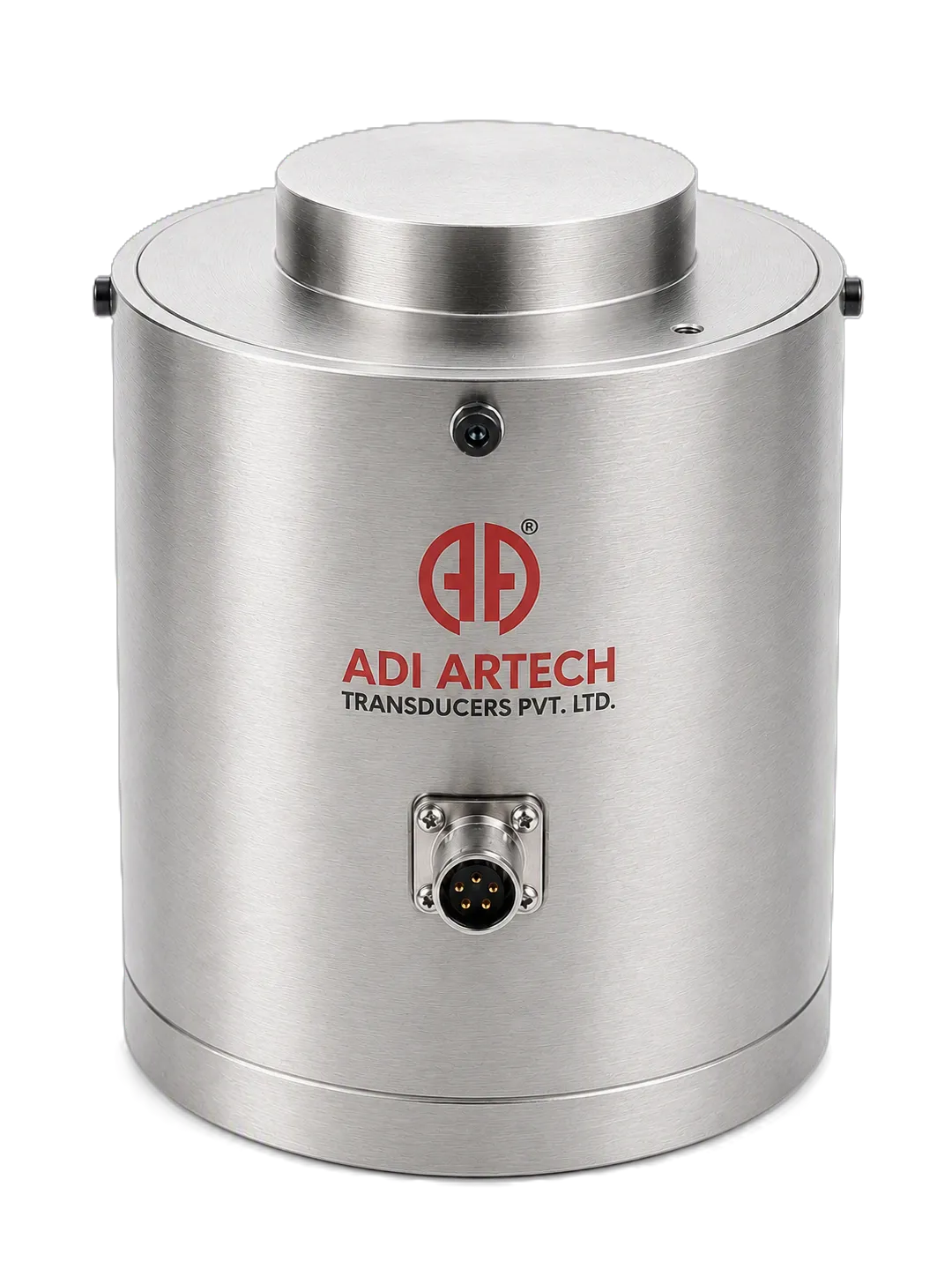

COMPRESSION CALIBRATION GRADE LOAD CELL
Capacity
- 0-30Kgf. To 0-400Kgf.
Load Direction
- Compression Only
Description
- Model 90710-B is a strain gauge based column Compression type Load cell. The cell is recommended for Calibration master load cell. It is also used for Compressive force testing Machines.
Application
- Compression Force Testing
- Hydraulic Press
- Force Calibration laboratories
- Civil & Construction Material Testing
- Pile & Structure Testing
Key Features
- High accuracy available with class 1, 0.5, 00 As per standard ISO 376:2011 Case A
- Complete Environmental Protection – Meets IP 67
- Electro less nickel-plated tool steel / SS 17-4 PH
- A high-temperature version can be provided on request
- Wide range of capacities from 300KN to 10000 KN.
Technical Specifications
STANDARD CAPACITY(KN)
300,500,750,1000,2000, 3000,5000,7500,10000
PERFORMANCE
PERFORMANCE
| Capacity (KN) |
300,500,750,1000,2000, 3000,5000,7500,10000 |
300,500,750, 1000,2000,3000 |
300,500,750,1000 |
|---|---|---|---|
|
Accuracy value as per
ISO376 |
Class 1 |
Class 0.5 |
Class 00 |
|
Repeatability |
< ±0.1 % FSO |
< ±0.05 % FSO |
<±0025 % FSO |
|
Reproducibility |
< ±0.2 % FSO |
< ±0.1 % FSO |
< ±0.05% FSO |
|
Interpolation |
< ±0.10 % FSO |
< ±0.05% FSO |
< ±0.025 % FSO |
|
Creep (300 Sec.) |
< ±0.1 % FSO |
< ±0.05 % FSO |
< ±0.025% FSO |
|
Zero return |
±0.050% FSO |
±0.025% FSO |
±0.012% FSO |
ELECTRICAL
ELECTRICAL
Output
Excitation Voltage
Input Resistance
Output Resistance
Cable
Insulation Resistance
10 VDC – Maximum 15 VDC
770 ± 5.0 Ω (Ohms)
700 ± 3.0 Ω (Ohms)
4 core / 6 core Shielded cable. 5 meter length
(100 VDC) > 1000 Mega Ω (Ohms)
2.00 mV/V
STRUCTURE
STRUCTURE
Safe Overload Of Rated Capacity
Ultimate Overload of Rated Capacity
Deflection
As per IS/IEC 60529:2001
150%
200%
< 0.4 mm at FSO
IP65
TEMP.
TEMP.
Operating Temperature
Compensated Temperature
Temperature Effect Output
Temperature Effect Zero
0oC to 55oC
10oC to 50oC
< 0.005 % FSO/ oC
< 0.0030 % FSO/ oC
OPTIONS
OPTIONS
Display
Assembly
Accessories
Calibration grade Hand Held display unit (Battery operated) model HH-06
Top Loading button
DLC-6 | DLC-6M DIGITAL LOAD CONTROLLER (MULTI. O/P)
