DLC-6

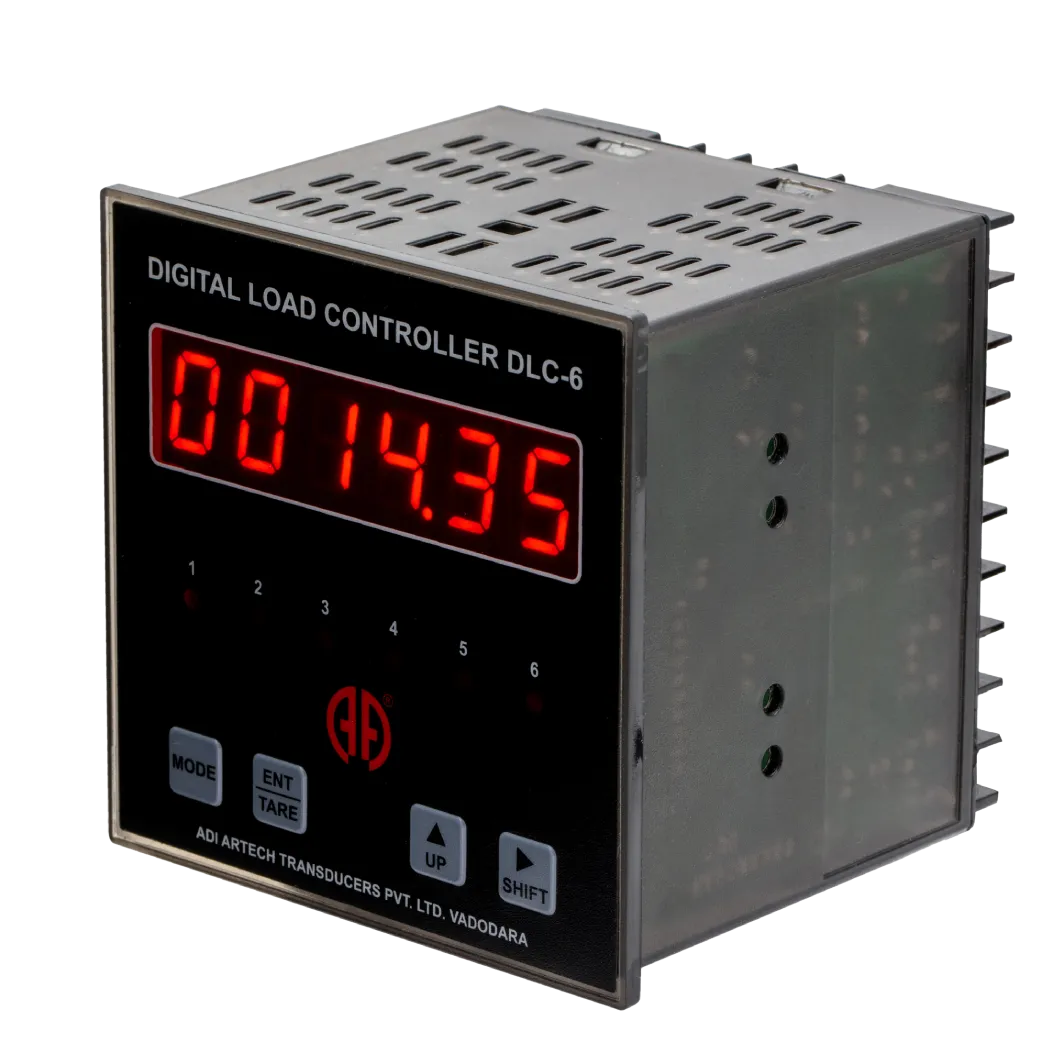

Digital Load Indicator and Controller
Capacity
- 0-1Kgf. To 0-1,000Tf. – for Load
- 0-1NM to 0-60,000NM – for Torque
- 0-50Bar to 0-1,000Bar – for Pressure
Load Direction
- Tension and Compression – for Load
- Clock and Anti Clock wise – for Torque
- Gage Pressure – for Pressure
Description
- DLC-6 is a versatile digital load controller used for process control and automation, bagging and filling, bottling and many such applications. Due to its industry standard communication protocols and field programmable scale functions it is used for all kinds of weighing applications and process control automation. Powerful calibration options including electronic calibration without test weights supports easy and fast start-up and service.
- Large 6 digit LED weight display (red 0.56 inch) with weight status allows good readability.
Options
- Either one 0-10 VDc or 4-20 mA output available
- Ethernet MODBUS TCP / IP option available on request
Key Features
- Made to EU type approval up to 10,000 usable intervals
- Serial RS-485 interface
- Large remote display interface for better readout
- Display Kg or Newton
- Field Programmable
- Internal count 100,000
Technical Specifications
STANDARDCAPACITY
20,50,75,100,200,250,300,500,750 – Kgf.
1,1.5,2,2.5,3,5,7.5,10,15,20, 30 – Tf.
Display and Keyboard
Display Type
Indicating LEDs
Key Type
0.56 inch 7 Segment RED 6 Digit
3mm RED Indicating Bright LEDs
4 Tactile Keys
A/D Converter
Type
Conversion Frequency
Analog Input Range
Resolution
Nominal 10Hz. Max 30Hz can be provided upon request
-19.5mV to +19.5mV
Internal 100,000 counts and usable 10,000 counts
24-bit Delta Sigma Analog to Digital converter with 50Hz and 60Hz rejection
Calibration and Functions
Calibration
Weighing Functions
Other Functions
Calibration is performedby appliying weighs. 10 step calibration options are also available upon request.Factory calibration rest or recall facility available.
Tare / Zero,External Tare / Zero net and Gross
1. Start and Stop
2. Peak adn Valley Hold and Clear
1. Functions are optional. Need to ask for the same while placing the order . Any one function set can be made available
Load Cells
Excitation
Number of Load Cells
5 VDc max.20mA
Supports upto 12 Load Cells through junction box or parallel wiring
Note: Supports 4 wire and 6 wire load cell connections.
Serial Options
Serial Protocol
Baud Rate
Data Bits
Stop Bits
Parity
MODBUS RTU
1200,2400,4800, 9600,14400,19200, 38400,56000, 57600, 115200 supported baud rates
8
1
None , Odd and Even
Optional
TCP / IP
Jumbo Display
Analog Output
Relays
MODBUS TCP/IP interface provided upon request
6 Digit 4-inch 7 segment readout option available for interfacing with DLC-6 series load indicator/controller
0-10 VDc or 4-20 mA or -10 VDc output option available
2 field programmable relay output available. Max current 2Amp
Can be programmed in ALARM or CONTROL mode and user settable set points available
Note: This option is to be specified at the time of ordering
