70510
Pin Type Load Cell
Capacity
- 0 - 0.2 Tf to 0 - 400 Tf
Load Direction
- Tension & Compression – Universal
Description

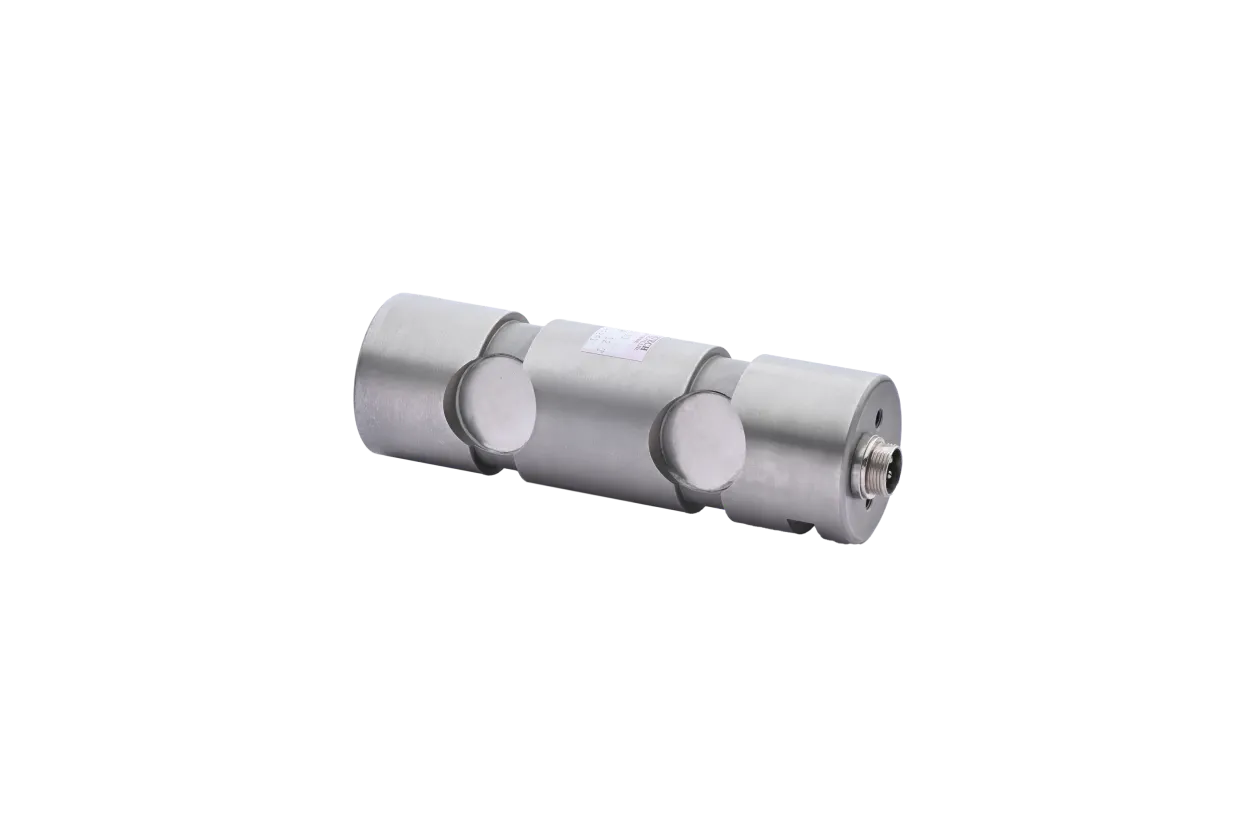

- 70510 is Axle Pin designed as double ended shear beam load / force transducer. It is strain gage based sensor with full temperature compensation over 0 - 60 Deg.C. It is constructed from SS 17-4 ph grade for corrosion and shock load resistance. This axle load pin is provided with slot for keeper plate for load direction, anti rotation and retaining purposes.
Application
- Anchor Force Measurement
- Bridge Rope Tension Measurement
- Crane & Hoist Load Monitoring
- Marin Towing
- Bollard Pull Test Dynamometer
- Cargo Handling in Ship Yards
- Lifting Equiptment Load Measurement
- Material Handling
Key Features
- 70510 Axle Pin is available from 0 - 0.5Tf to 0 - 500Tf capacities.
- This can be customized as per specific requirements.
Technical Specifications
STANDARD CAPACITY
0.2,0.5,1,1.5,2,3,5,7.5,10,15,20,30
,50,75,100,150,200,300,400 – Tf.
,50,75,100,150,200,300,400 – Tf.
0.2,0.5,1,1.5,2,3,5,7.5,10,15,20,30,50,75,100,150,200,300,400 – Tf.
PERFORMANCE
PERFORMANCE
Non- Linearity
Hysteresis
Non-Repeatability
Creep(30minutes)
ZeroBalance
< ±0.5% FSO (Full Scale Output)
< ±0.3% FSO
< ±0.2% FSO
< ±0.1% FSO
±1.0%FSO
ELECTRICAL
ELECTRICAL
Output
Excitation Voltage
Input Resistance
Output Resistance
Insulation Resistance
10VDC-Maximum15VDC
390 +/-5 / 770 +/- 20 Ohms
350 +/- 2 / 700+/- 5 Ohms
≥1000 Meg Ohms
3.00 mV/V±0. 05%:20210
(Customized Output ailable on request)
STRUCTURE
STRUCTURE
Safe Overload
Of Rated Capacity
Ultimate Overload
of Rated Capacity
Allowable Side Load
Deflection
Finish Product
IP Rating
150% of Rated Capacity
250% of Rated Capacity
50%
< 0.4mmatFSO
Stainless Steel 17-4 ph Sensing element
IP65
TEMP.
TEMP.
Operating
Temperature
Compensated
Temperature
Temperature
Effect Output
Temperature
Effect Zero
0ºC to 60ºC
0-60ºC
< 0.005% FSO/ ºC
< 0.005% FSO/ ºC
OPTIONS
OPTIONS
Atex Grade
High Temp.
High Temp. Cable
Extra cable length
Mounting Accessories
Dual Bridge
Digital Version
Compatible Instrument
Wireless Telemetry
II 3D EX tc IIIC T60ºC DC II 3G EX ec IIC GC
Operating Range – 100D°C
Teflon Cable
Specify extra length In Meters
WM-IX
Redundancy for uninterrupted measurement in critical applications
Digital Output
DLC-6M, DLC-6
With remote Display
Application
Industries
