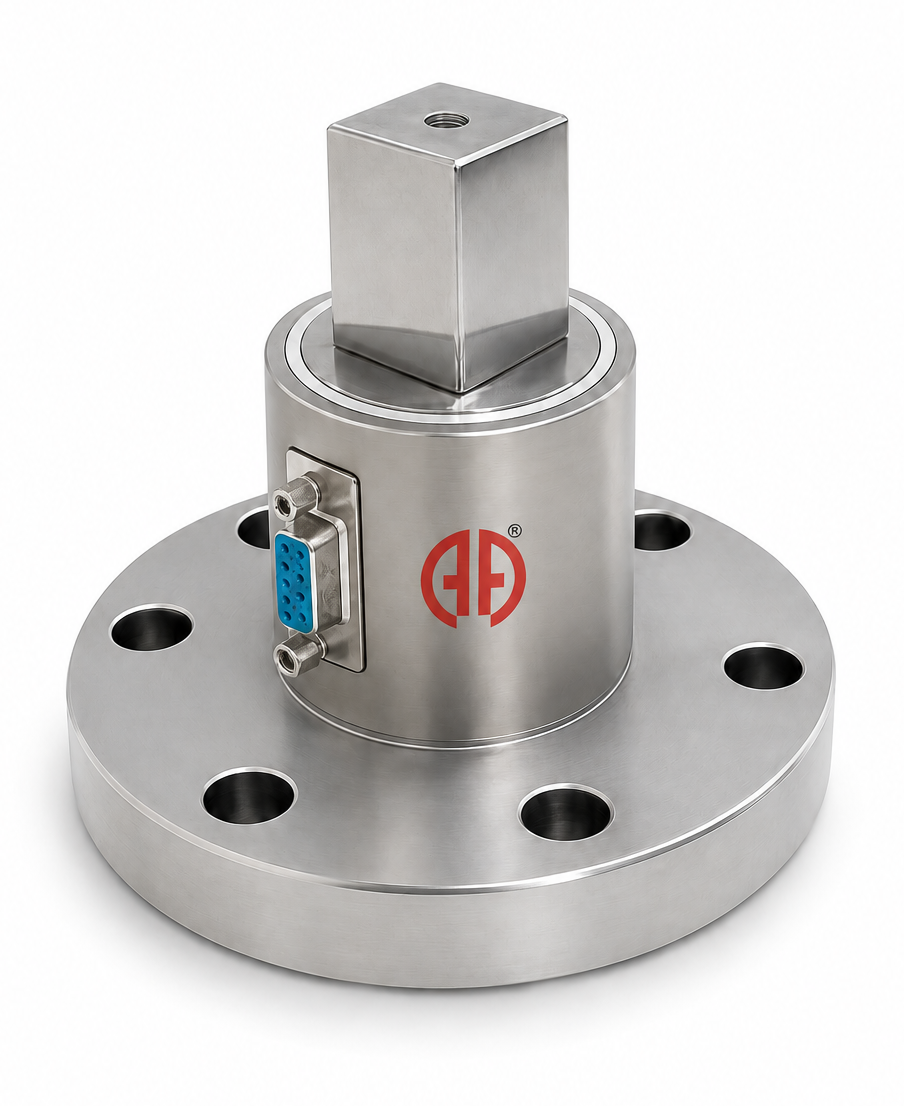

TTS-F-SQD
Static Reaction Torque Transducer
Capacity
- 0 - 10 NM to 0 – 50KNM
Load Direction
- Clock & Anti clock Wise
Description
- This is static reaction torque transducer – CE Certified, flange mount with male SQ Drive at loading end is designed for industrial and research applications. It is constructed from Electro less Ni plated tool steel for harsh industrial applications. TTS-F-SQ-M is strain gage based sensor with full temperature compensation over 10 to 50C. It is compensated for axial and side loads for very good linearity and low hysteresis. It is very compact and easy to install into the applications. It is available from 0-100 NM to 0-50000 NM capacities to cover vide industrial applications. It is suitable for clock wise and anti-clock wise directions
Application
- Actuator/valve/electrical tool testing
- Axle/shaft torsion test
- Bearing friction measuring
- Testing of starters/slip rings/brushes/clutches/brakes
- Electric/hydraulic/pneumatic motors testing
- Alternators/pumps/gas, diesel, turbine engines testing
- Automobile testing of drive shaft and crank shaft torque
- Defense, Aerospace, R&D Establishments, Offshore test rigs, Automotive, machine tools,
Key Features
- CE Rated
- Very compact and rugged for heavy duty applications.
- Compensated for axial and bending moments for good accuracy.
- Gage area is sealed for IP 65 degree of environmental class.
- Can be supplied as per customers required size and capacity.
- Both end shaft or one end shaft and other end flange type also can be supplied
Technical Specifications
STANDARD CAPACITY
0 – 10 NM to 0 – 50KNM
PERFORMANCE
PERFORMANCE
Non- Linearity
Hysteresis
Non-Repeatability
Creep(30minutes)
ZeroBalance
< ±0.5% Full Scale Output
< ±0.2% FSO
< ±0.1% FSO
< ±0.03% FSO
±1.0% FSO
ELECTRICAL
ELECTRICAL
Nominal Output
Excitation Voltage
Input Resistance
Output Resistance
Insulation Resistance(50VDC)
Cable Length
10 VDC- Maximum 15 VDC
392 ± 15 Ohms
350 ± 3 Ohms
> 1000 Mega Ohms(50 VDC)
5 meters
2.0 m V/ V
STRUCTURE
STRUCTURE
Safe Overload of Rated Capacity
Ultimate Overload of Rated Capacity
Deflection
Finish & Construction
Environmental Protection Class
150%
250%
< 0.2 DEG. FSO
Tool Steel / Stainless Steel 17-4 PH
IP 65
TEMP.
TEMP.
Compensated
Temperature
Temperature
Effect Output
Temperature
Effect Zero
10-50 °C
< 0.015% FSO/ °C
< 0.020% FSO/ °C
OPTIONS
OPTIONS
Compatible Instrument
DLC-6M, DLC-6
