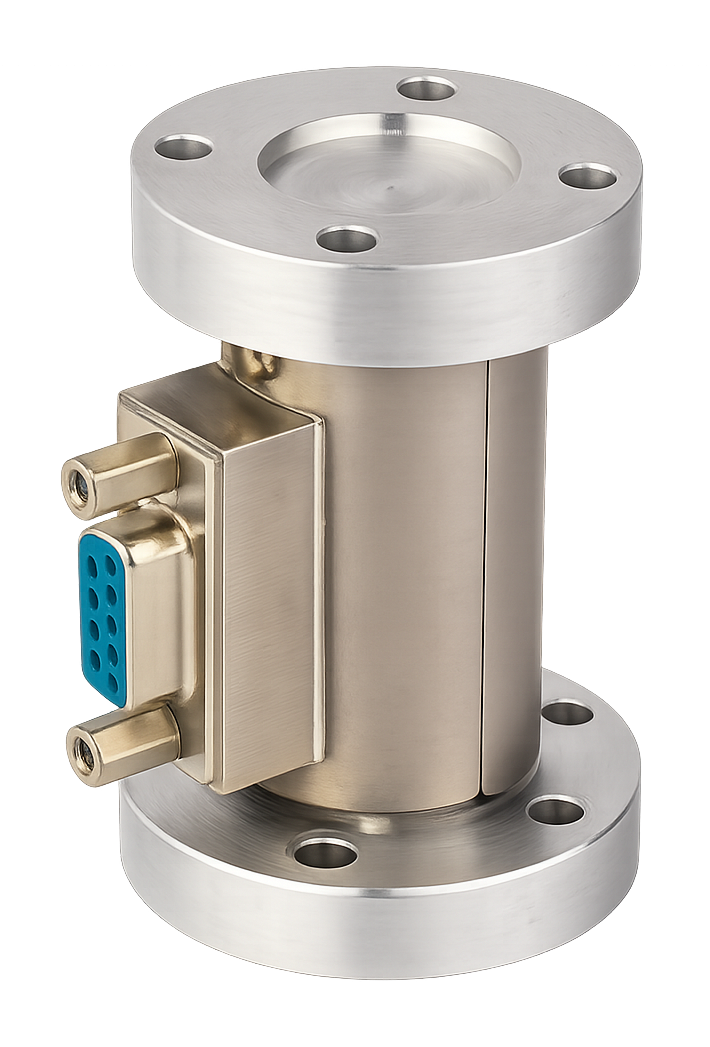

TTS–FF-MINI
Static Reaction Torque Transducer
Capacity
- 0 - 1 NM to 0 - 20 NM
Load Direction
- Clock & Anti clock Wise
Description
- TTS-FF-M is CE Certified mini static reaction torque transducer, flange mount type designed for industrial and research applications. It is constructed from Aluminum alloy. This is strain gage based sensor with full temperature compensation over 10 to 50C. It is compensated for axial and bending moments for very good linearity and low hysteresis. Both end flanges makes it very compact and easy to install into the applications. It is available from 0-1 NM to 0-20 NM capacities to cover vide industrial applications. It is suitable for clock wise and anti-clock wise directions.
Application
- Actuator/valve/electrical tool testing
- Axle/shaft torsion test
- Bearing friction measuring
- Testing of starters/slip rings/brushes/clutches/brakes
- Electric/hydraulic/pneumatic motors testing
- Wood / pencil sharpening torque testing
Key Features
- CE Rated
- Very compact and rugged
- Compensated for axial and bending moments for good accuracy.
- Gage area is sealed for IP 65 degree of environmental class.
- Can be supplied as per customers required size and capacity.
- Both end shaft or one end shaft and other end flange type combination can be supplied
Technical Specifications
STANDARD CAPACITY
1 , 2 , 5 , 10 , 20 NM
PERFORMANCE
PERFORMANCE
Non- Linearity
Hysteresis
Non-Repeatability
Creep(30minutes)
ZeroBalance
< ±0.5% Full Scale Output
< ±0.2% FSO
< ±0.1% FSO
< ±0.03% FSO
±1.0% FSO
ELECTRICAL
ELECTRICAL
Nominal Output
Excitation Voltage
Input Resistance
Output Resistance
Insulation Resistance(50VDC)
Cable Length
10 VDC- Maximum 15 VDC
392 ± 15 Ohms
350 ± 3 Ohms
> 1000 Mega Ohms(50 VDC)
5 meters
2.0 m V/ V
STRUCTURE
STRUCTURE
Safe Overload of Rated Capacity
Ultimate Overload of Rated Capacity
Allowable Side Load
Angular Deflection
Finish & Construction
Environmental Protection Class
150%
250%
50%
< 0.2 at FSO
Aluminum Alloy 2024
IP 65
TEMP.
TEMP.
Compensated
Temperature
Temperature
Effect Output
Temperature
Effect Zero
0-60 °C
< 0.015% FSO/ °C
< 0.020% FSO/ °C
OPTIONS
OPTIONS
Compatible Instrument
DLC-6M, DLC-6
