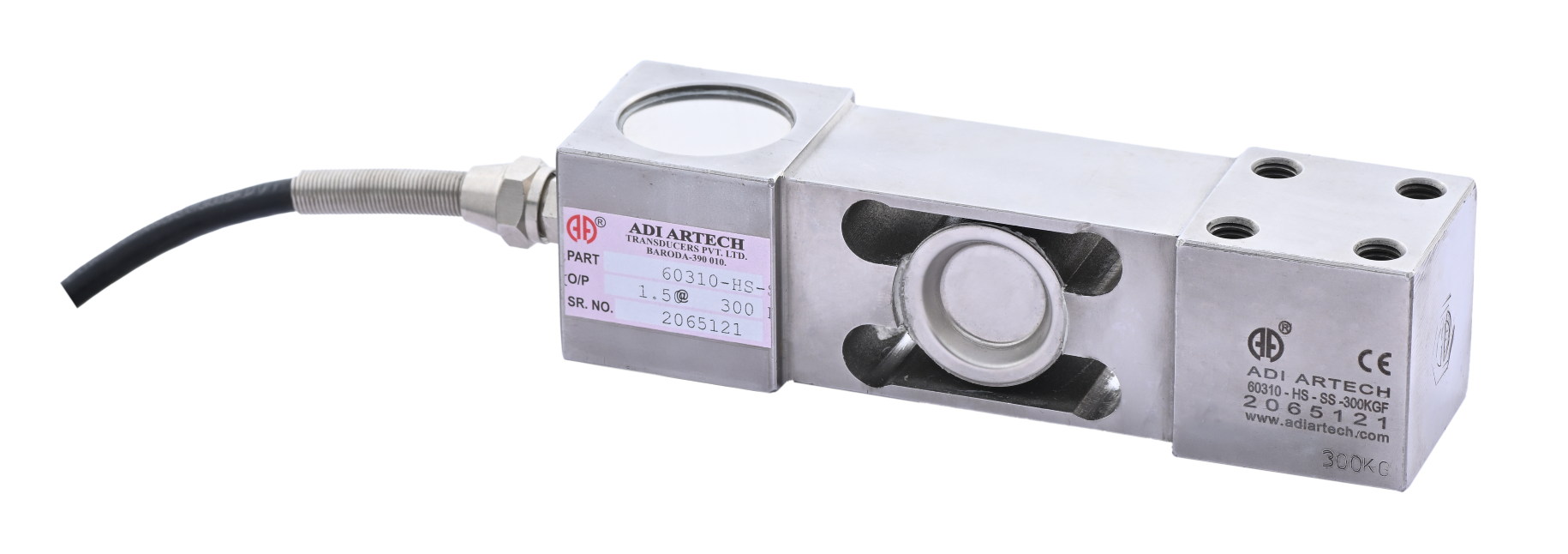

60310-HS
Single Point Load Cell Hermetically Sealed
Capacity
- 150 , 200 , 300 , 400 , 500 , 600 Kgf.
Load Direction
- Compression only
Description
- CE Certified 60310-HS is Hermitically Sealed Single Point Load Cell. It is specially designed for small scales for fisheries and dairy applications. It is constructed from Tool Steel EN24 or Stainless Steel for protection against corrosion and shocks. It is strain gage based load cell with full temperature compensation over 10 to 50C. It is easy to install and use. Strain Gage area is sealed by Laser Welded SS Cover for protection against ingress of moisture and water.
Application
- Table top scales
- Fishries scales
- Check weigher
- Bagging machines
- Dairy , Chemical and Pharmaceutical weighing
Key Features
- CE Rated 150 , 200 , 300 , 400 , 500 , 600 Kgf. capacities are offered.
- Complete environmental protection for gage area is provided for IP-68 protection class with ss cap laser welded.
- Laser welded cap for gage area for hermetical sealing.
Technical Specifications
STANDARD CAPACITY
150 , 200 , 300 , 400 , 500 , 600Kgf.
PERFORMANCE
PERFORMANCE
Non- Linearity
Hysteresis
Non-Repeatability
Creep(30minutes)
ZeroBalance
< ±0.05% FSO (from 5% to 100% range)
< ±0.03% FSO
< ±0.05%FSO
< ±0.03%FSO
±5.0%FSO
ELECTRICAL
ELECTRICAL
Nominal Output
Excitation Voltage
InputResistance
OutputResistance
InsulationResistance
10 VDC- Maximum 15 VDC
390 ± 20 Ohms
350 ± 10 Ohms
> 1000 Mega Ohms at 50 VDC
1.5 m V/V
STRUCTURE
STRUCTURE
SafeOverload
OfRatedCapacity
UltimateOverload
ofRatedCapacity
Deflection
Eccentric Load Effect
IP Rating
150%
200%
< 0.4 mm at FSO
<0.3% of FSO when 1/3 rated load is placed
within 250mm radius from center of load cell.
Platter size – 500mmx500mm.
IP-68
TEMP.
TEMP.
Compensated
Temperature
Temperature
Effect Output
Temperature
Effect Zero
0ºC to 50ºC
< 0.005% FSO/ ºC
< 0.004% FSO/ ºC
OPTIONS
OPTIONS
Extra cable length
Digital Version
Compatible Instrument
Specify extra length In Meters
Digital Output
DLC-6M, DLC-6, Summing Junction Box
