90610-M-T

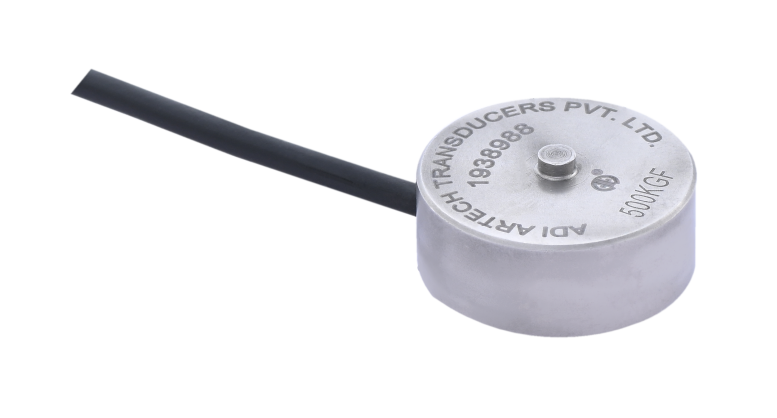

Low Profile Pancake Load Cell - Threaded Mounting
Capacity
- 0 - 50 Kgf to 0 - 1000 Kgf
Load Direction
- Compression only
Description
- 90610-M-T Mini Pan cake compression type load cell is very miniature and is used where space is constraint. It is constructed from Stainless Steel 17-4 PH suitable for harsh and hygienic industrial applications. It is provided 3 mounting threaded hole for proper fixing. It is strain gage based with temperature compensation.
Application
- Brake Force Measurement
- Pedal Force Monitor
- Machine automation
- Pharmaceutical Machines
Key Features
- Available in capacity from 0-50 to 0-1000 Kgf Complete environment protection IP 65 class.
- Standard output 2.0mV/V Hardened Stainless Steel construction
Technical Specifications
STANDARD CAPACITY
50,100,200,500,750,1000 – Kgf.
PERFORMANCE
PERFORMANCE
Non- Linearity
Hysteresis
Non-Repeatability
Creep(30minutes)
ZeroBalance
< ±0.1% FSO
< ±0.1% FSO
< ±0.1% FSO
< ±0.03% FSO
±1.0% FSO
ELECTRICAL
ELECTRICAL
Output
Excitation Voltage
Input Resistance
Output Resistance
Insulation Resistance
10VDC-Maximum15VDC
390 ± 10 Ohms
350 ± 3 Ohms
> 1000 Mega Ohms
3.00 mV/V±0. 05%:20210
(Customized Output ailable on request)
STRUCTURE
STRUCTURE
Safe Overload
Of Rated Capacity
Ultimate Overload
of Rated Capacity
AllowableSideLoad
Deflection
Finish Product
IP Rating
150%
250%
50%
< 0.4mmatFSO
Electrolessnickel-platedtoolsteel
IP67
TEMP.
TEMP.
Operating
Temperature
Compensated
Temperature
Temperature
Effect Output
Temperature
Effect Zero
0ºC to 60ºC
10ºC to 50ºC
< 0.0015%FSO/ ºC
< 0.0020%FSO/ ºC
OPTIONS
OPTIONS
Compatible Instrument
DLC-6M, DLC-6
Industries
