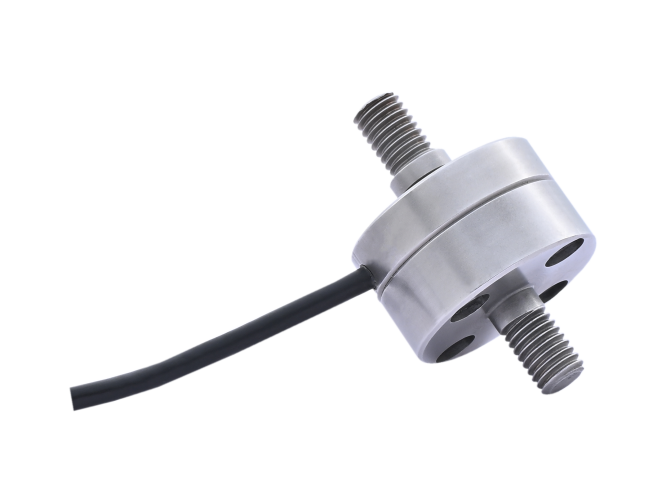

90610-M-TH-Universal
Low Profile Pancake Load Cell - Threaded Ends
Capacity
- 0 - 50 Kgf to 0 - 1500 Kgf
Load Direction
- Tension & Compression - Universal
Description
- 90610-M-TH-U is Mini Pan cake Load Cell used for compression and tension inline loads where space is constraint. It is constructed from Aluminum Alloy or Stainless Steel 17-4 PH. It is designed for harsh and hygienic industrial applications. This Load Cell is provided with M8 mounting threaded on both ends for compressive and or tensile loadings. It is strain gage based sensor with temperature compensation over 10 to 50 0C. Available in capacity 0 - 50 Kgf to 0 - 1500 Kgf. Complete environment protection IP 65 class. Standard output 2.0mV/V. Aluminum / SS 17-4 PH construction. Small size makes it useful in space limited applications in machines and automations. Higher capacity can be offered.
Application
- Assembly Processes
- Force Measurement Tension & or Compression Dynamometer
- Pharmaceutical Machines
- R & D
- Automotive Research
- Machine automation
- Materials Testing
- Press Force Monitoring
- Tensile Testing
Key Features
- Available in capacity 0 - 50 Kgf to 0 - 1500 Kgf.
- Complete environment protection IP 65 class. Standard output 2.0mV/V.
- Aluminum / SS 17-4 PH construction.
- Small size makes it useful in space limited applications in machines and automations.
- Higher capacity can be offered.
Technical Specifications
STANDARD CAPACITY
20,50,75,100,200,250,300,500,750 – Kgf.
PERFORMANCE
PERFORMANCE
Non- Linearity
Hysteresis
Non-Repeatability
Creep(30minutes)
ZeroBalance
< ±0.25% FSO
< ±0.1% FSO
< ±0.1% FSO
< ±0.03% FSO
±1.0% FSO
ELECTRICAL
ELECTRICAL
Output
Excitation Voltage
Input Resistance
Output Resistance
Insulation Resistance
10VDC-Maximum15VDC
390 ± 10 Ohms
350 ± 3 Ohms
> 1000 Mega Ohms
3.00 mV/V±0. 05%:20210
(Customized Output ailable on request)
STRUCTURE
STRUCTURE
Safe Overload
Of Rated Capacity
Ultimate Overload
of Rated Capacity
Allowable Side Load
Deflection
Finish Product
IP Rating
150%
250%
50%
< 0.4mmatFSO
Electrolessnickel-platedtoolsteel
IP65
TEMP.
TEMP.
Operating
Temperature
Compensated
Temperature
Temperature
Effect Output
Temperature
Effect Zero
0ºC to 60ºC
10ºC to 50ºC
< 0.05% FSO/ °C
< 0.05% FSO/ °C
OPTIONS
OPTIONS
Compatible Instrument
DLC-6M, DLC-6
