TTS – MINI
Static Reaction Torque Transducer
Capacity
- 1, 2, 5, 10, 20 NM.
Load Direction
- Clock & Anti clock Wise
Description
-

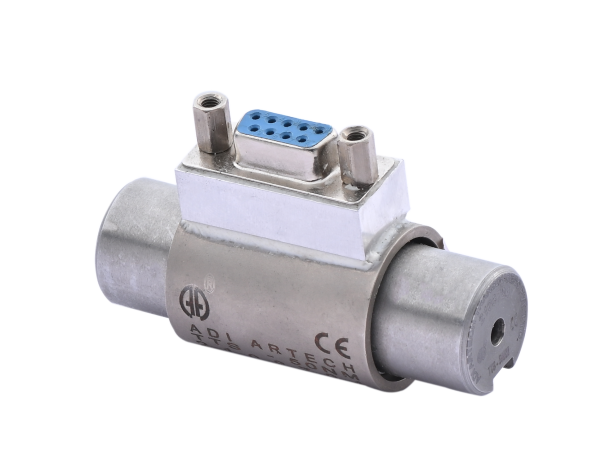

TTS – mini is CE Certified precision type Static Reaction Torque Transducer useful in bottle cap sealing & opening, valves and fasteners testing. Its small size makes it easy to install in small space available in applications. Available range is from 1NM to 20NM. This can be fitted to the system easily through key ways provided at both cylindrical shaft ends.
It is constructed from Aluminum Alloy 2024-T4 or Stainless steel 17-4 ph. material for ruggedness and harsh industrial applications. Its design is strain gage based with full temperature compensation over 10 to 50 C range.
Application
- Bottle cap sealing & removal
- Valve Testing
- Fastener Testing
Key Features
- CE Rated 1, 2, 5, 10, 20 NM. Capacities available.
- Aluminum Alloy or Stainless Steel 17-4 ph construction for resistance against shock and overload.
- Complete Environmental Protection -IP65 class.
- Can be customized to suit customer’s requirements.
- High Temperature version can be provided on request.
Technical Specifications
STANDARD CAPACITY
1, 2, 3, 5, 10, 20 NM
PERFORMANCE
PERFORMANCE
Non- Linearity
Hysteresis
Non-Repeatability
Creep(30minutes)
ZeroBalance
< ±0.1% Full Scale Output
< ±0.1% FSO
< ±0.1% FSO
< ±0.03% FSO
±1.0% FSO
ELECTRICAL
ELECTRICAL
Nominal Output
Excitation Voltage
Input Resistance
Output Resistance
Insulation Resistance(50VDC)
Cable Length
10 VDC- Maximum 15 VDC
392 ± 15 Ohms
350 ± 3 Ohms
> 1000 Mega Ohms(50 VDC)
1 meters
2.0 m V/ V +/- 0.2
STRUCTURE
STRUCTURE
Safe Overload of Rated Capacity
Ultimate Overload of Rated Capacity
Allowable Side Load
Rotational Angular Deflection
Finish & Construction
Environmental Protection Class
150%
250%
50%
< 0.2 at FSO
Aluminum Alloy 2024 – 1 to10NM
Stainless Steel 17-4PH – 20, 30NM
Meets to IP 65 requirements.
TEMP.
TEMP.
Compensated
Temperature
Temperature
Effect Output
Temperature
Effect Zero
10-50 °C
< 0.015% FSO/ °C
< 0.020% FSO/ °C
OPTIONS
OPTIONS
Compatible Instrument
DLC-6M, DLC-6
