RFS-200
RADIAL FORCE SENSOR
- 0.30 to 250 Kgf.
- Tension & Compression – Universal
Description

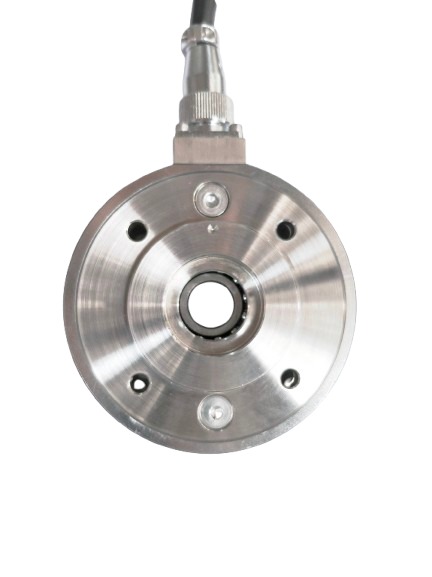

- Radial Force Sensor RFS-200 is strain gauge based load cell with full temperature compensation. It is provided with in built overload & under protection during transit and during operation and it is easy for installation. It is fitted with Self Aligning ball bearing housing. Entire sensor is constructed from tool steel. RFS are typically applied in pair, one on each end of rotating shaft. RFS makes a significant contribution for more productive operations at an improved quality. Higher capacity version is available upon request.
Application
Used for measuring web tension of materials drawn over a rotating roller of-
Web Processing Equipment For:
- Paper
- Foil
- Film
- Magnetic Tape
- Plastic Tape
- Thin Metal Web
- Textile / Non- Wovens
Web Converting Equipment For:
- Coating
- Printing
- Embossing
- Slitting
- Laminating
- Winder / Unwinder
- Web Converter
Key Features
- Ideal for industrial Radial Force Sensing.
- Complete Environmental Protection – Meets IP 65 class
- Electro less nickel-plated tool steel constructions
- Wide range of capacities from 10 KGF to 200 KGF.
- In built over load / under load Construction
- Standardized output 1.5 mV/V offered
- Calibration in mV/V/Ω
Technical Specifications
STANDARD CAPACITY(KGF)
10, 20, 50, 75, 100, 150, 200
PERFORMANCE
PERFORMANCE
Non- Linearity
Non-Repeatability
Combine Error
Creep(30minutes)
Zero Balance
< ±0.05 % FSO
< ±0.05 % FSO
< ±0.05 % FSO
< ±0.03 % FSO
±1.0% FSO
ELECTRICAL
ELECTRICAL
Output
Excitation Voltage
Input Resistance
Output Resistance
Insulation Resistance
Maximum 15 VDC (Suggested 5VDc / 10VDc)
375 Ω (Ohms)
350 Ω (Ohms)
(100 VDC) > 1000 Mega Ω (Ohms)
1.5 mV/V
STRUCTURE
STRUCTURE
Safe Overload of Rated Capacity
Ultimate Overload of Rated Capacity
Allowable Side Load
Deflection
Finish Product
Cable Length(4 Core Screened)
As per IS/IEC 60529:2001
150%
250%
50%
< 0.5 mm at FSO
Electro less nickel-plated tool steel
5 Pin Connector Gland with 8 Meter Cable
TEMP.
TEMP.
Operating Temperature
Compensated Temperature
Temperature Effect on Output
Temperature Effect Zero
Loading Direction
0oC to 60oC (Optional 90oC, 120oC, 150oC)
10oC to 50oC (Optional 90oC, 120oC, 150oC)
< 0.04 % FSO/ oC
< 0.04 % FSO/ oC
Towards Dot Mentioned on Cover (Downward Towards Connector)
