30510

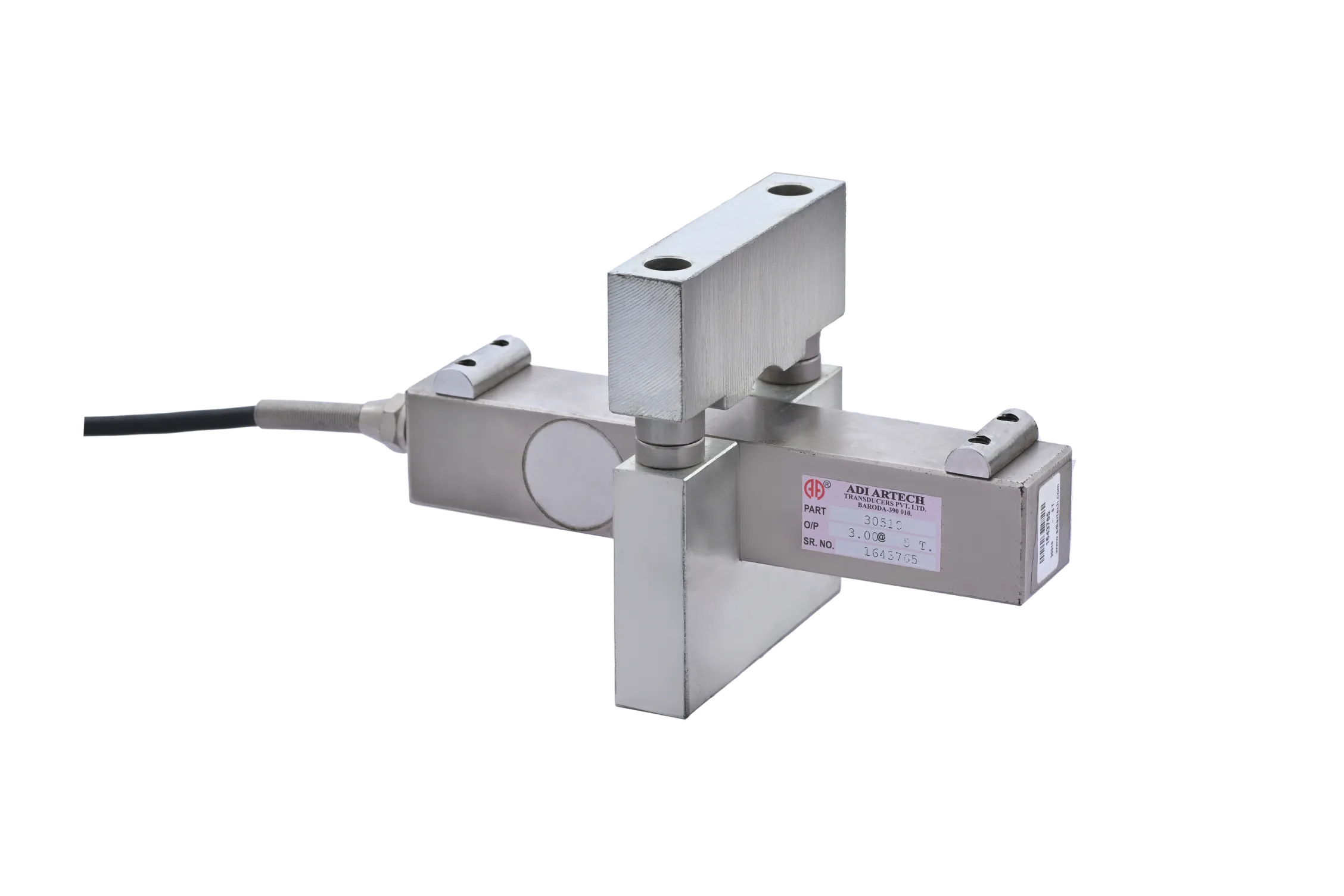

ROPE TENSION LOAD CELL
Capacity
- 0-1 to 0-30 Tf.
Load Direction
- Tension only
Description
- CE Certified 30510 load cell is strain gage based and is fully temperature compensated over 0 to 50 °C. It used in industrial applications where the tension in wire rope needs to be carefully and continuously monitored to prevent overload into the equipment. The load cell is conveniently clamped-on to the rope in existing condition. It is designed to handle rope diameter from 8mm to 80mm. Higher capacity can be provided on request.
Application
- Elevator load monitor.
- Specially designed for protecting cranes and hoists from overload.
- Tension measurement in stay ropes, suspension ropes and Rail way catenary ropes.
- Testing of starters/slip rings/brushes/clutches/brakes
- Vehicle pull test.
- Ship Bollard pull test.
Key Features
- CE Rated
- 0.1 Tf to 3.0 Tf capacities of load cells are offered for rope tension ranging from 1Tf to 30 Tf
- Complete environmental protection IP-65 class provided
- Standard output 1.0mV/V available
- Can be provided to accommodate multi rope applications - up to 4 ropes
Technical Specifications
STANDARD CAPACITY
1.0 to 30.0 Tf. of Rope Tension
PERFORMANCE
PERFORMANCE
Non- Linearity
Hysteresis
Non-Repeatability
Creep(30minutes)
ZeroBalance
< ± 5.0 % FSO for range up to 20%
< ± 2.0 % FSO for range above 20%
< ± 2.0 % FSO for range above 20%
< ±0.1% FSO
< ±0.1% FSO
< ±0.05% FSO
±1.0% FSO
ELECTRICAL
ELECTRICAL
Nominal Output
Excitation Voltage
Input Resistance
Output Resistance
Insulation Resistance(50VDC)
Cable Length
10 VDC- Maximum 15 VDC
390 ± 20 Ohms
350 ± 10 Ohms
> 1000 Mega Ohms(50 VDC)
5 meters
1.0 m V/ V +/- 0.5
STRUCTURE
STRUCTURE
Safe Overload of Rated Capacity
Ultimate Overload of Rated Capacity
Deflection
Finish & Construction
Environmental Protection Class
150%
300%
< 0.4 mm at FSO
Electro less Ni plated Tool Steel
IP65
TEMP.
TEMP.
Compensated
Temperature
Temperature
Effect Output
Temperature
Effect Zero
0-50 °C
< 0.025% FSO/ °C
< 0.030% FSO/ °C
OPTIONS
OPTIONS
Atex Grade
High Temp.
High Temp. Cable
Extra cable length
Compatible Instrument
II 3D EX tc IIIC T60ºC DC II 3G EX ec IIC GC
Operating Range – 100D°C
Teflon Cable
Specify extra length In Meters
DLC-6M, DLC-6, Jumbo Display
