60920

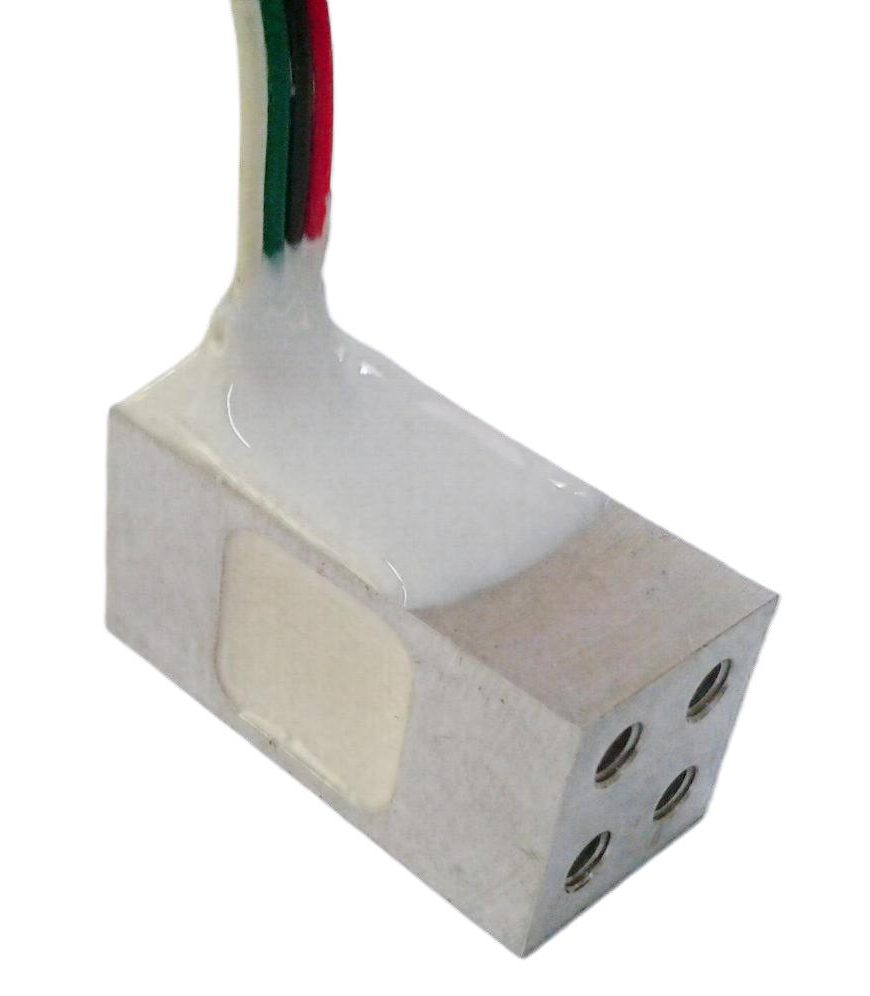

Side Mount Bending Beam Load Cell
Capacity
- 20 Kgf to 50Kgf
Load Direction
- Tension & Compression – Universal
Description
- 60920 is low profile side mounted bending or shear beam load cell for Web Tension Measurement. It is Strain gauge based with full temperature compensation over 10 to 50 ºC. Its side mounted loading design helps to build web tension measuring sensor by OEMs.
Application

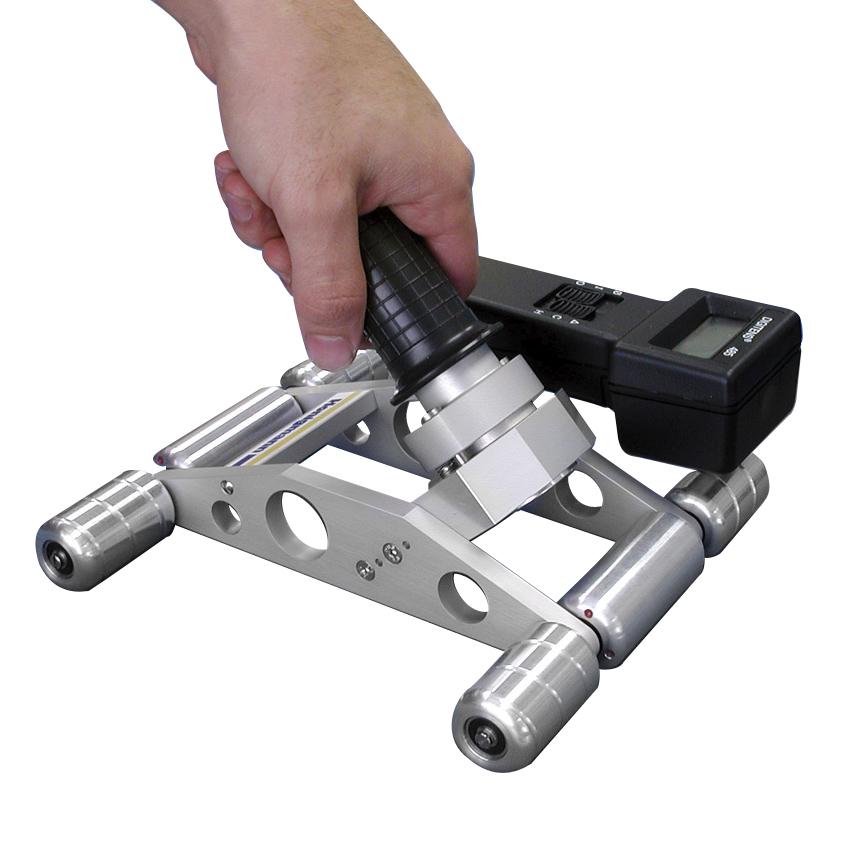

- Web Tension Sensor
- Force gage
- Check weigher
- Small bagging machines
Key Features
- Complete Environmental Protection – Meets IP 65 class
- Electro less Nickel Plated Tool Steel or Stainless Steel constructions
- Wide range of capacities from 20 KGF to 50 KGF
- Designed for Web Tension Measuring Sensor OEMs
- Calibration in mV/V/Ω
- Can be customized to suit customer’s need
Technical Specifications
STANDARD CAPACITY
20, 50 Kgf.
PERFORMANCE
PERFORMANCE
Non- Linearity
Hysteresis
Non-Repeatability
Creep(30minutes)
ZeroBalance
< ±0.05% FSO (Full Scale Output)
< ±0.05% FSO
< ±0.05% FSO
< ±0.03% FSO
±2.0% FSO
ELECTRICAL
ELECTRICAL
Nominal Output
Excitation Voltage
Input Resistance
Output Resistance
InsulationResistance
Maximum 15 VDC (Suggested 5VDc / 10VDc)
350 ± 5.0 Ohms
350 ± 5.0 Ohms
(100 VDC) > 1000 Mega Ohms
2.0 m V/ V
STRUCTURE
STRUCTURE
Safe Overload Of Rated Capacity
Ultimate Overload of Rated Capacity
Allowable Side Load
Deflection
Finish Product
As per IS/IEC 60529:2001
150%
250%
50%
< 0.4 mm at FSO
Aluminum Alloy
IP-65
TEMP.
TEMP.
Operating Temperature
Compensated Temperature
Temperature
Effect Output
Temperature
Effect Zero
0ºC to 60ºC
10-50 ºC
< 0.025% FSO/ °C
< 0.030% FSO/ °C
OPTIONS
OPTIONS
Compatible Instrument
DLC-6M, DLC-6, Summing Junction Box
