SIDE MOUNTED BEAM LOAD CELL
Capacity
- 50 Kgf to 500Kgf
Load Direction
- Tension & Compression – Universal
Description

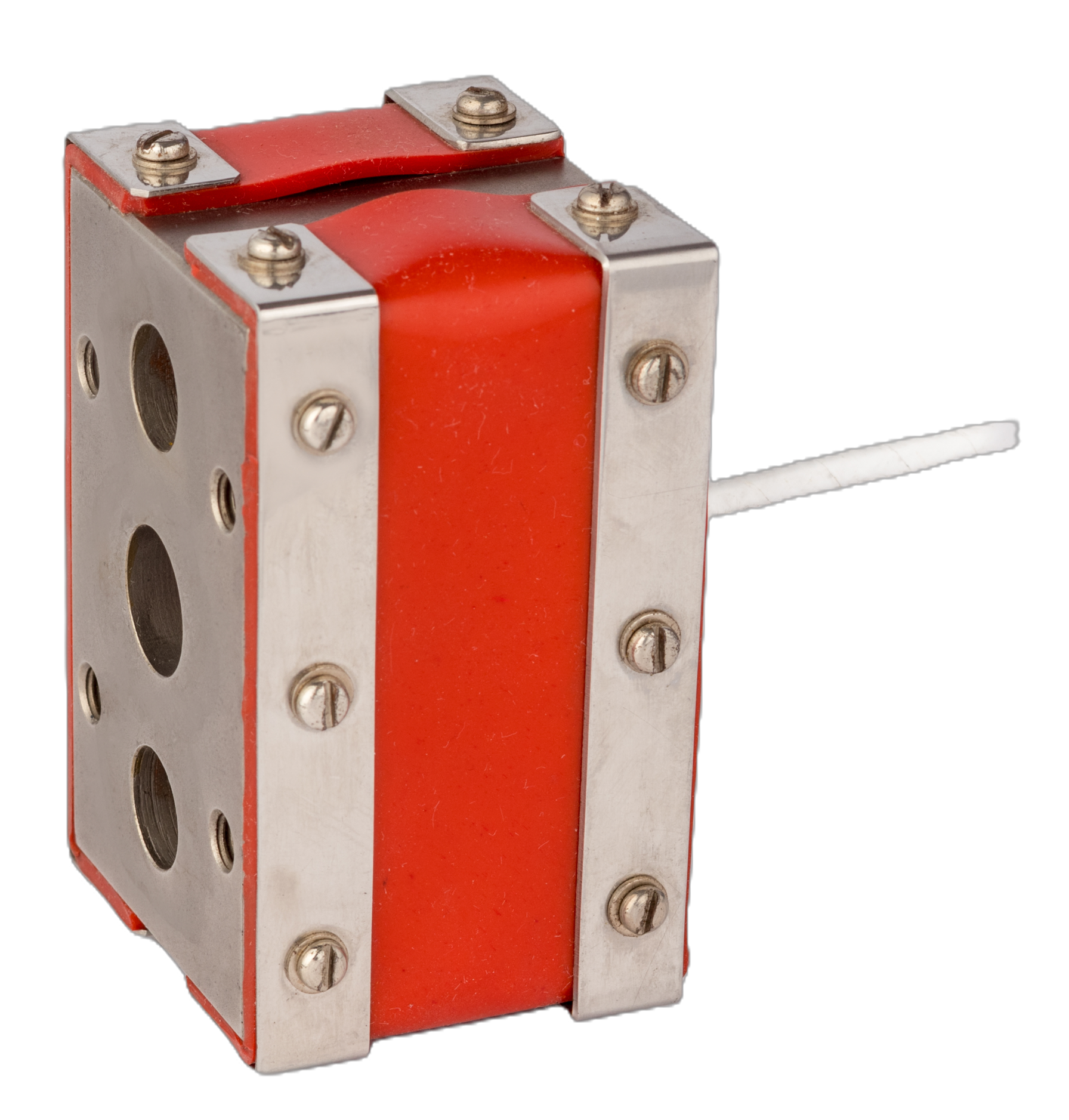

- 60910 is side mounted load cell, specially designed for Soil testing Machine. It is Constructed with Tool Steel. It is Electro less Nickel plated providing protection against corrosion. It is strain gauge based with full temperature Compensation over 0 to 50ºC. It is easy to install and use. It is suitable for wall mounted hopper, tank weighing. This can be used to measure load of forklifts.
Application
- Soil Testing
- Hopper weighing
- Tank Weighing
- Forklift
- Material Handling
Key Features
- Complete Environmental Protection – Meets IP 65 class
- Electro less Nickel Plated Tool Steel or Stainless Steel constructions
- Wide range of capacities from 50 KGF to 500 KGF
- Calibration in mV/V/Ω
- Can be customized to suit customer’s need
Technical Specifications
STANDARD CAPACITY
50, 75, 100, 150, 200, 300, 500 Kgf
PERFORMANCE
PERFORMANCE
Non- Linearity
Hysteresis
Non-Repeatability
Creep(30minutes)
ZeroBalance
< ±0.75% FSO (from 4% to 100% range)
< ±0.25% FSO
< ±0.30% FSO
< ±0.03% FSO
±5.0% FSO
ELECTRICAL
ELECTRICAL
Nominal Output
Excitation Voltage
Input Resistance
Output Resistance
Insulation Resistance
Maximum 15 VDC (Suggested 5VDc / 10VDc)
390 ± 20 Ohms
350 ± 10 Ohms
(100 VDC) > 1000 Mega Ohms
0.45 to 1.0 m V/ V
STRUCTURE
STRUCTURE
Safe Overload
Of Rated Capacity
Ultimate Overload of Rated Capacity
Allowable Side Load
Deflection
Finish Product
IP Rating
150%
250%
50%
< 0.5 mm at FSO
Electro less Nickel Plated Tool Steel
IP-65
TEMP.
TEMP.
Operating Temperature
Compensated Temperature
Temperature
Effect Output
Temperature
Effect Zero
0ºC to 60ºC
10ºC to 50ºC
< 0.015% FSO/ ºC
< 0.020% FSO/ ºC
OPTIONS
OPTIONS
Compatible Instrument
DLC-6M, DLC-6, Summing Junction Box
