60930
Side Mounted Shear Beam Load Cell
Capacity
- 750Kgf to 5000Kgf
Load Direction
- Tension & Compression – Universal
Description
- 60930 is side mounted load cell, Specially designed for Platform Scale, Tank and silo weighing. It is constructed with Tool Steel. It is Electro less nickel Plated for providing protection against corrosion. It is strain gauge based with full temperature compensation over 0 to 50 ºC. It is easy to install and use. It is suitable for wall mounted Hopper, Tank Weighing. This can be used to measure load of Forklifts.
Application
- Platform Scale

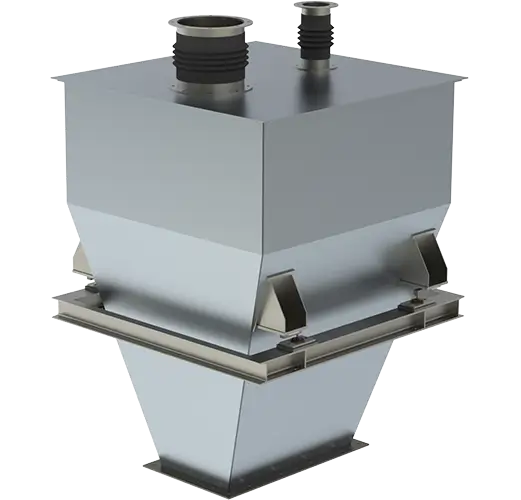

- Hopper weighing
- Tank Weighing
- Forklift
- Material Handling
Key Features
- Complete Environmental Protection – Meets IP 65 class
- Electro less Nickel Plated Tool Steel or Stainless Steel constructions
- Wide range of capacities from 750 KGF to 5000 KGF
- Calibration in mV/V/Ω
- Can be customized to suit customer’s need
Technical Specifications
STANDARD CAPACITY
750 , 1000, 1500, 2000, 3000, 5000 Kgf.
PERFORMANCE
PERFORMANCE
Non- Linearity
Hysteresis
Non-Repeatability
Creep(30minutes)
ZeroBalance
< ±0.05% FSO (from 4% to 100% range)
< ±0.03% FSO
< ±0.03% FSO
< ±0.03% FSO
±5.0% FSO
ELECTRICAL
ELECTRICAL
Nominal Output
Excitation Voltage
Input Resistance
Output Resistance
Insulation Resistance
Maximum 15 VDC (Suggested 5VDc / 10VDc)
390 ± 20 Ohms
350 ± 10 Ohms
(100 VDC) > 1000 Mega Ohms
2 mV/ V
STRUCTURE
STRUCTURE
Safe Overload
Of Rated Capacity
Ultimate Overload of Rated Capacity
Allowable Side Load
Deflection
Finish Product
As per IS/IEC 60529:2001
150%
250%
50%
< 0.4 mm at FSO
Electro less Nickel Plated Tool Steel
IP-65
TEMP.
TEMP.
Operating Temperature
Compensated Temperature
Temperature
Effect Output
Temperature
Effect Zero
0ºC to 60ºC
10ºC to 50ºC
< 0.015% FSO/ ºC
< 0.020% FSO/ ºC
OPTIONS
OPTIONS
Compatible Instrument
DLC-6M, DLC-6, Summing Junction Box
