60610

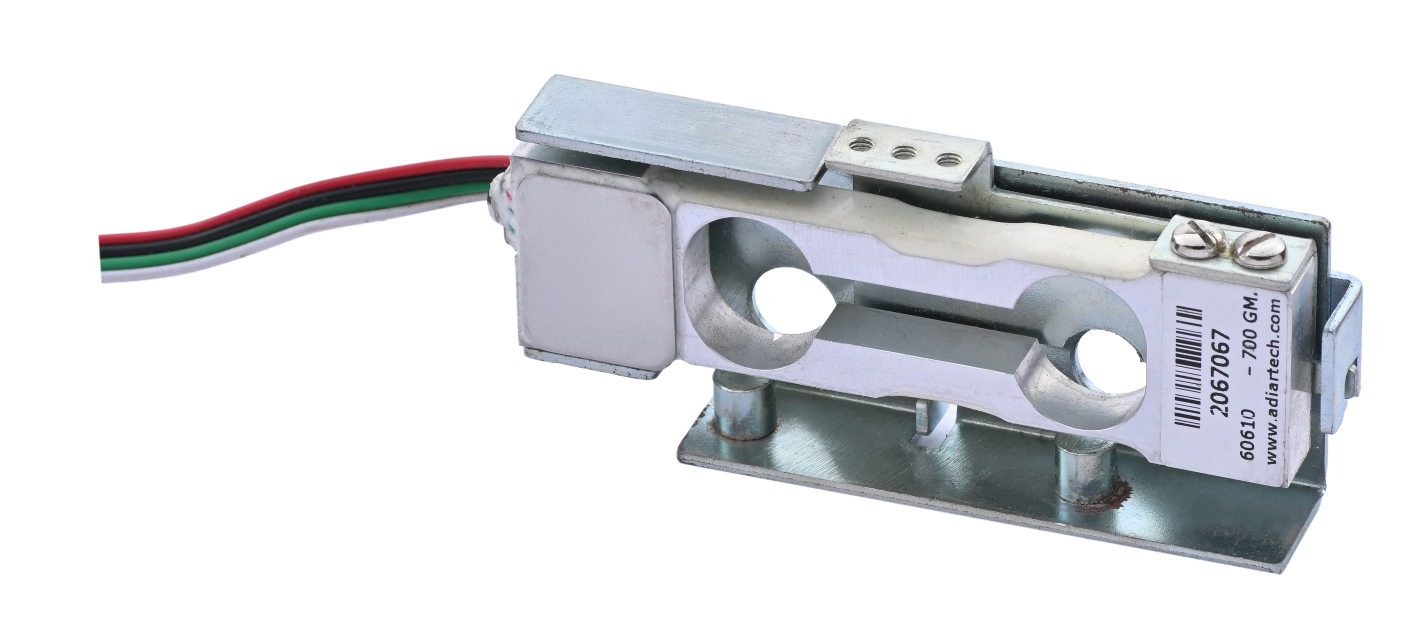

Single Point Miniature Load Cell
Capacity
- 0-100Gmf to 0-2000Gmf
Load Direction
- Compression only
Description
- 60610 is Strain Gauge based low profile bending beam miniature load cell and is ideal for jewellery and table top scales. It is designed for low eccentric load effects. It is provided with mechanical over load and under load protection mechanism.
Application
- Precision jewelry Scales
- Small Bagging Machines
- Thread Tension Measurement
Key Features
- Single Point Capability with Minimum Off- center Error.
- Moisture Protecting Sealing
- Complete Environmental Protection – Meets IP 65 class
- Aluminum Alloy constructions
- Inbuilt Mechanical over load Protection Bracket
- Wide range of capacities from 100 Gram F to 2 KGF.
- Calibration in mV/V/Ω
Technical Specifications
STANDARD CAPACITY
100, 200, 300, 400, 500, 750, 1000, 1500, 2000 – Gmf.
PERFORMANCE
PERFORMANCE
Non- Linearity
Hysteresis
Non-Repeatability
Creep(30minutes)
ZeroBalance
< ±0.025% FSO (from 4% to 100% range)
< ±0.02%FSO
< ±0.01%FSO
< ±0.03%FSO
±1.0%FSO
ELECTRICAL
ELECTRICAL
Output
Excitation Voltage
Input Resistance
Output Resistance
Insulation Resistance
Maximum 15 VDC (Suggested 5VDc / 10VDc)
420 ± 15.0 Ω (Ohms)
350 ± 5.0 Ω (Ohms)
(100 VDC) > 1000 Mega Ω (Ohms)
1.6 mV/V ± 0.2%
STRUCTURE
STRUCTURE
Safe Overload
Of Rated Capacity
Ultimate Overload
of Rated Capacity
Allowable Side Load
Deflection
Platter Size
Finish Product
As per IS/IEC 60529:2001
Mechanical Protection
150%
250%
50%
< 0.4 mm at FSO
120 mm dia.
Aluminum Alloy
Meets IP 65
Bracket provided for over and under load protection
TEMP.
TEMP.
Operating
Temperature
Compensated
Temperature
Temperature Effect Output
Temperature Effect Zero
Eccentric Load Effect
0oC to 55oC
10oC to 50oC
< 0.0015 % FSO/ oC
< 0.0020 % FSO/ oC
< 0.025 % of FSO when 1/3 rated load placed within 120 mm radius from center of load cell
OPTIONS
OPTIONS
Extra cable length
Digital Version
Compatible Instrument
Specify extra length In Meters
Digital Output
DLC-6M, DLC-6, Summing Junction Box
