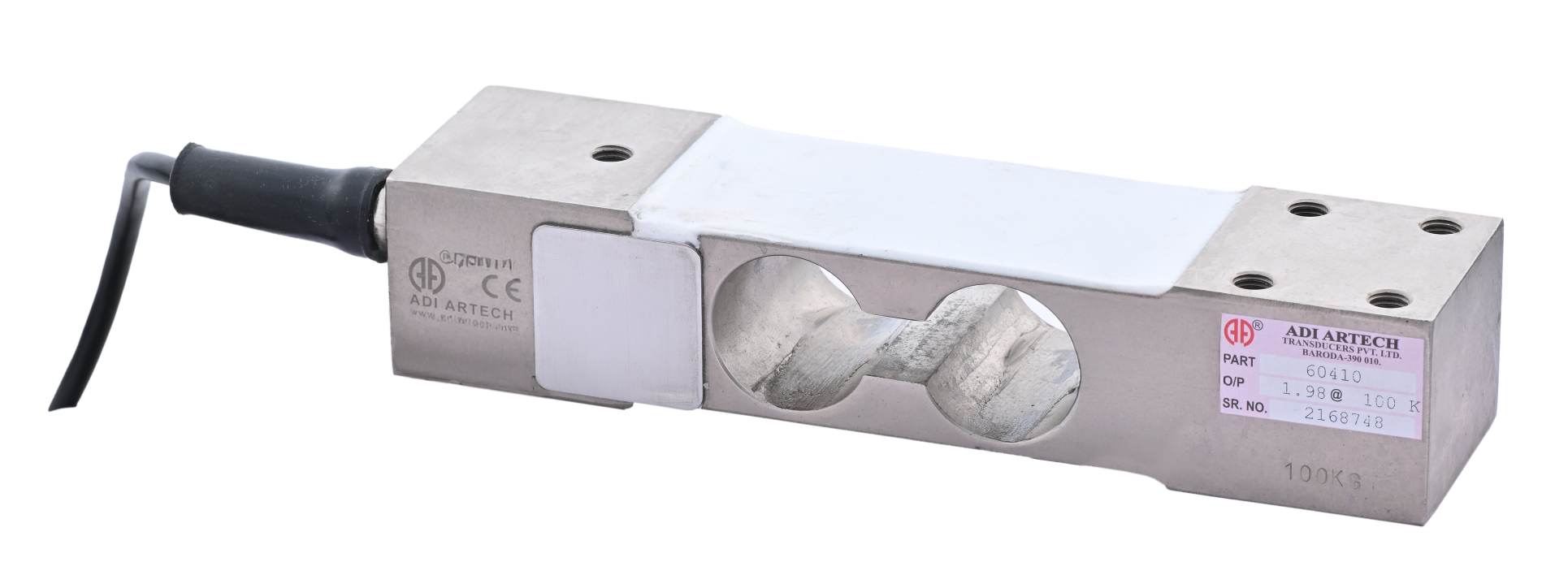

Single Point Off Center Load Cell
Capacity
- 0 - 100 Kgf to 0 - 1500 Kgf
Load Direction
- Compression only
Description
- Strain Gage based low profile single point load cell. Off center load compensated for 500x500 mm platter. It is rugged and low profile.
Application
- Low Profile Floor Scale
Key Features
- Single point capability for platform scales.
- Minimum error for off center loading. Supports the pan size of 750 X 750 mm.
- Low profile, compact and light weight.
- 100Kgf. To 1500Kgf. Capacities offered.
Technical Specifications
STANDARD CAPACITY
100, 200, 300, 500, 750, 1000, 1500 – Kgf
1,1.5,2,2.5,3,5,7.5,10,15,20, 30 – Tf.
PERFORMANCE
PERFORMANCE
Non- Linearity
Hysteresis
Non-Repeatability
Creep(30minutes)
ZeroBalance
< ±0.025% FSO (Full Scale Output)
< ±0.02% FSO
< ±0.01% FSO
< ±0.03% FSO
±1.0% FSO
ELECTRICAL
ELECTRICAL
Output
Excitation Voltage
Input Resistance
Output Resistance
Insulation Resistance
10 VDC- Maximum 15 VDC
390 ± 15 Ohms
350 ± 3 Ohms
> 1000 Mega Ohms at 50VDC
3.00 mV/V±0. 05%:20210
(Customized Output ailable on request)
STRUCTURE
STRUCTURE
Safe Overload
Of Rated Capacity
Ultimate Overload
of Rated Capacity
Allowable Side Load
Deflection
Finish Product
IP Rating
150% of Rated Capacity
250% of Rated Capacity
50%
< 0.5 mm at FSO
60410-Electro less nickel plated tool steel
60410-SS-Stain less Steel 17-4 ph
IP67
TEMP.
TEMP.
Operating
Temperature
Compensated
Temperature
Temperature
Effect Output
Temperature
Effect Zero
0ºC to 60ºC
0-60 °C
< 0.0015% FSO/ °C
< 0.0020% FSO/ °C
OPTIONS
OPTIONS
Extra cable length
Digital Version
Compatible Instrument
Specify extra length In Meters
Digital Output
DLC-6M, DLC-6, Summing Junction Box
Application
Industries
