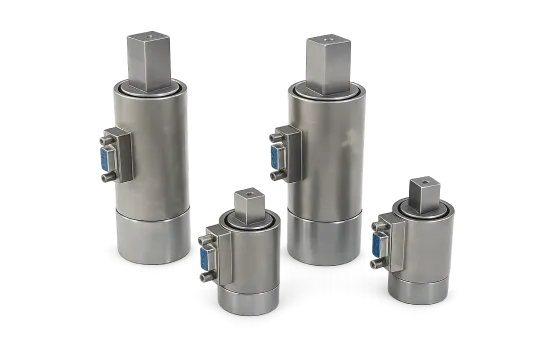

TTS–SQD
Static Reaction Torque Transducer
Capacity
- 0-10 to 0-50KNM.
Load Direction
- Clock & Anti clock Wise
Description
- CE Certified TTS-SQ Torque Sensor used in industrial & research application where Torque is to be measured accurately. It is easily fitted in suitable test bench through Square Drive ends-male/female. It is constructed from stainless steel 17-4 PH material for ruggedness and harsh industrial applications. Its design is strain gage based with full temperature compensation over 10 to 50C range.
Application
- Motor, Switches, Shaft & Axle torque measurement.
- To measure operating Torque of Industrial Valve & actuators.
- Automotive, Aerospace & offshore valves test rigs.
- To measurement tightening Torque of Industrial Fasteners.
Key Features
- CE Rated
- Excellent selection of range from 0-10 to 0-50KNM.
- S.S. 17-4 PH construction for resistance against shock and overload.
- Complete Environmental Protection -IP65 class.
- Can be customized to suit customer’s requirements.
- Axial & Bending force are compensated.
Technical Specifications
STANDARD CAPACITY
10, 20, 50, 100, 200, 300, 500, 1K, 1.5k,
2K, 3K, 5K, 10K, 20K, 30K, 50K -NM
PERFORMANCE
PERFORMANCE
Non- Linearity
Hysteresis
Non-Repeatability
Creep(30minutes)
ZeroBalance
< ±0.1% Full Scale Output
< ±0.1% FSO
< ±0.1% FSO
< ±0.03% FSO
±1.0% FSO
ELECTRICAL
ELECTRICAL
Nominal Output
Excitation Voltage
Input Resistance
Output Resistance
Insulation Resistance(50VDC)
Cable Length
10 VDC- Maximum 15 VDC
392 ± 15 Ohms
350 ± 3 Ohms
> 1000 Mega Ohms(50 VDC)
5 meters
2.0 m V/ V + / – 0.5
STRUCTURE
STRUCTURE
Safe Overload of Rated Capacity
Ultimate Overload of Rated Capacity
Allowable Side Load
Rotational Angular Deflection
Finish & Construction
Environmental Protection Class
150%
250%
50%
< 0.4 mm at FSO
Stainless Steel 17-4 PH
IP 65 for gage area
TEMP.
TEMP.
Compensated
Temperature
Temperature
Effect Output
Temperature
Effect Zero
10-50 °C
< 0.05% FSO/ °C
< 0.05% FSO/ °C
OPTIONS
OPTIONS
Compatible Instrument
DLC-6M, DLC-6
