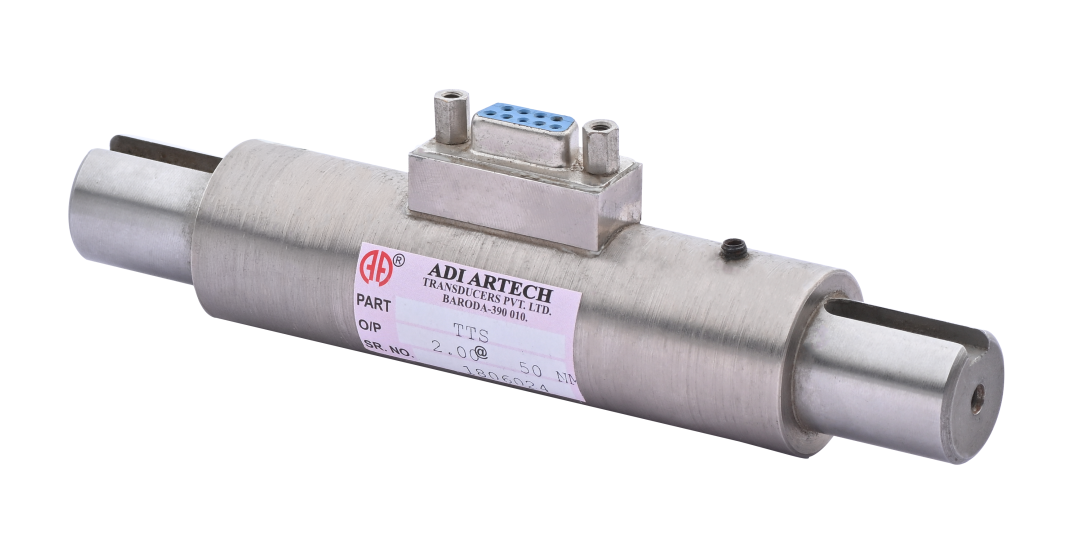

TTS – SS
Static Reaction Torque Transducer
Capacity
- 0 - 50 NM to 0 - 50KNM
Load Direction
- Clock & Anti clock Wise
Description
-
CE Certified TTS-SS Static Reaction Torque Transducer is used in industrial & research applications where Torque is to be measured accurately. It is easily fitted in suitable test bench through key ways provided at both cylindrical shaft ends. It is constructed from stainless steel 17-4 PH material for ruggedness and harsh industrial applications. It is strain gage based sensor with full temperature compensation over 10 to 50°C range. Flange mounted and Square Drive versions are available.
All of these sensors are also available for inline rotating torque measurements with Slip Ring mechanism or wireless non-contact types. Integrated measuring system for rotational speed or angle of rotation can be provided for gear testing or determining power of rotating machines.
Application
- Motor, Switches, Shaft & Axle torque measurement.
- To measure operating Torque of Industrial Valve & actuators.
- Automotive, Aerospace & offshore valves test rigs.
- Torque measurement of Industrial Fastener.
Key Features
- CE Rated Excellent selection of range from 0-50 to 0-50KNM.
- SS 17-4 PH construction for resistance against shock and overload.
- Environmentally protected for IP-65 Class.
- Can be customized to suit customer’s requirements.
- Axial & Bending forces are compensated.
Technical Specifications
STANDARD CAPACITY
0 – 50 NM to 0 – 50KNM
PERFORMANCE
PERFORMANCE
Non- Linearity
Hysteresis
Non-Repeatability
Creep(30minutes)
ZeroBalance
< ±0.1% Full Scale Output
< ±0.1% FSO
< ±0.1% FSO
< ±0.03% FSO
±1.0% FSO
ELECTRICAL
ELECTRICAL
Nominal Output
Excitation Voltage
Input Resistance
Output Resistance
Insulation Resistance(50VDC)
Cable Length
10 VDC- Maximum 15 VDC
392 ± 15 Ohms
350 ± 3 Ohms
> 1000 Mega Ohms(50 VDC)
5 meters
2.0 m V/ V +/- 0.2
STRUCTURE
STRUCTURE
Safe Overload of Rated Capacity
Ultimate Overload of Rated Capacity
Rotational Angular Deflection
Finish & Construction
Environmental Protection Class
150% FSO
250% FSO
< 0.4 at FSO
Stainless Steel 17-4 PH
IP 65 for gage area
TEMP.
TEMP.
Compensated
Temperature
Temperature
Effect Output
Temperature
Effect Zero
0-50 °C
< 0.05% FSO/ °C
< 0.05% FSO/ °C
OPTIONS
OPTIONS
Compatible Instrument
DLC-6M, DLC-6
