20610 – F

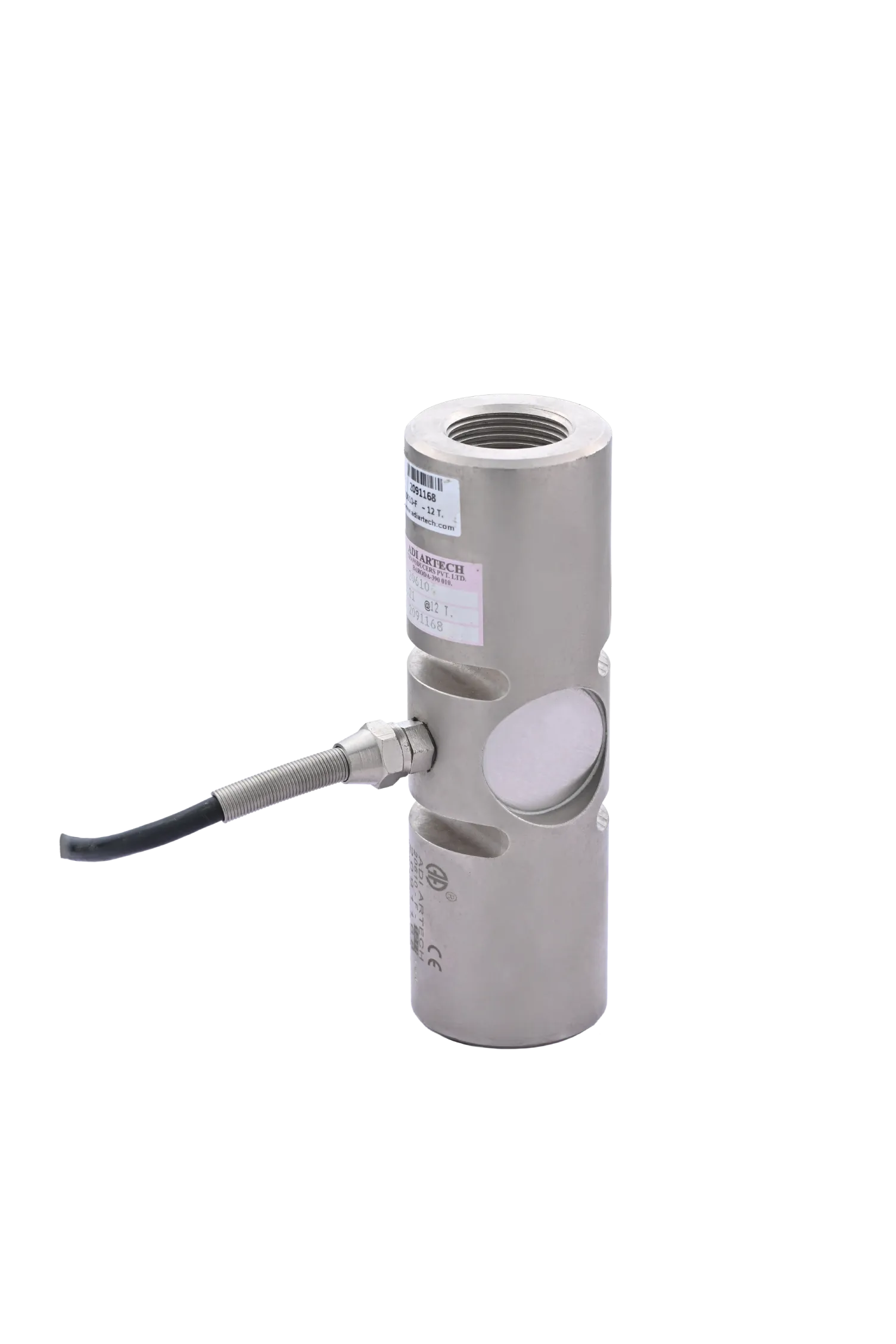

TENSION LINK LOAD CELL
Capacity
- 1, 2, 5, 7.5, 10, 15, 20, 30, 40, 50, 75, 100, 150, 200, 300, 450 TF.
Load Direction
- Tension only
Description
- 20610 – F is strain gage based load cell with temperature compensation over 0 to 60°C range. It is universal load cell for compression & tension force measurements. This has Female threads at both ends for fixing into the system. It is very use full for in line force measurements. It is constructed from tool steel for toughness & ruggedness. It is sealed for IP65 protection class for environment.
Application
- Line tension measurement
- Force measurement in hydraulic system
- Extrusion process
- Hanging type of weighing
- Calibration of testing machine
- Industrial process control
Key Features
- 1,2,5,7.5,10,15,20,30,40,50,75,100,150,200,300,450 TF Capacities available.
- High Alloy Tool Steel construction for resistance against shock and overload.
- It is light weight and portable.
- High Temperature version for foundry applications is available upon request.
- Female thread version Model 20610 – F is available.
- Can be designed to fit your dimensional needs.
- Can be supplied with suitable electronic transmitter, indicator, and controller.
Technical Specifications
STANDARD CAPACITY
1, 2, 5, 7.5, 10, 15, 20, 30, 40, 50, 75, 100,
150, 200, 300, 450 TF.
PERFORMANCE
PERFORMANCE
Non- Linearity
Hysteresis
Non-Repeatability
Creep(30minutes)
Zero Balance
<±0.2% FSO (Full Scale Output)
< ±0.2% FSO
< ±0.2% FSO
< ±0.1% FSO
±1.0% FSO
ELECTRICAL
ELECTRICAL
Nominal Output
Excitation Voltage
Input Resistance
Output Resistance
Insulation Resistance(50VDC)
Cable Length
10 VDC- Maximum 15 VDC
775 ± 15 Ohms
700 ± 3 Ohms
> 1000 Mega Ohms(50 VDC)
5 meters
2.0 mV/V
STRUCTURE
STRUCTURE
Safe Overload of Rated Capacity
Ultimate Overload of Rated Capacity
Fatigue Rating
Deflection
Finish & Construction
Environmental Protection Class
150%
300%
106
Full cycles
< 0.5 mm at FSO
Electroless Nickel Plated Tool Steel
Meets IP65
TEMP.
TEMP.
Compensated
Temperature
Temperature
Effect Output
Temperature
Effect Zero
0-60 °C
< 0.0015% FSO/°C
< 0.0020% FSO/ °C
OPTIONS
OPTIONS
High Temp.
High Temp. Cable
Compatible Instrument
Wireless Telemetry
Operating Range – 100D°C
Teflon Cable
DLC-6M, DLC-6
With remote Display
