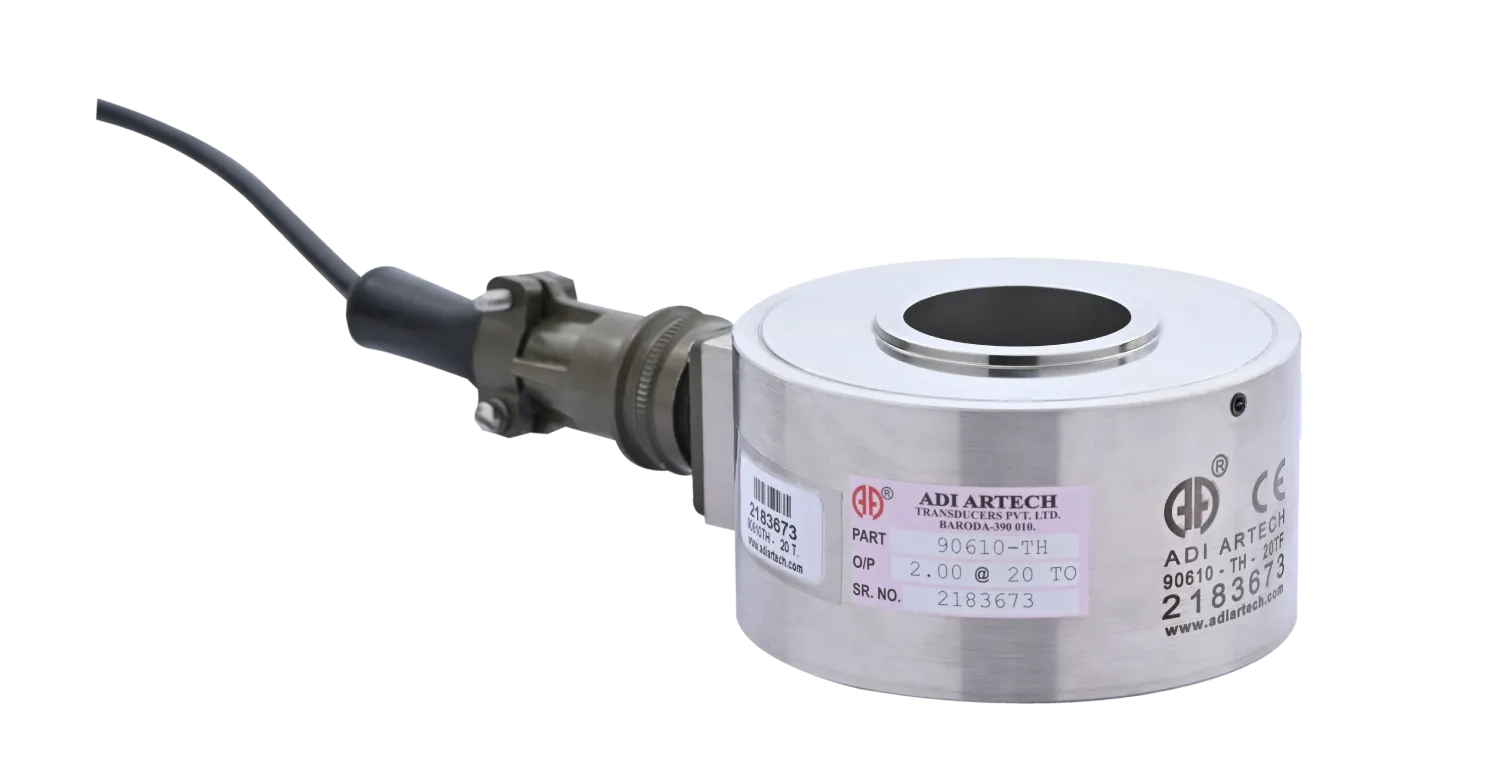

90610-TH
THROUGH HOLE LOAD CELL
Capacity
- 5Tf to 500Tf
Load Direction
- Compression only
Description
- CE Certified 90610-TH is through hole compression Load Cell, specially designed for fastener testing where the compression loading of sensor is induced by tensile loading of the fastener. It is strain gage based with full temperature compensation over 0 to 60C. It is easy to install and use. It can be used to measure suspended load by mounting the load cell on flat surface and apply load to top surface by the leg mount passed through the hollow center. Fastener testing can be done by passing it through hole. Then apply force by tightening the nut. Washers at both ends are recommended to avoid damage to the cell’s loading surfaces.
Application
- Fastener Testing
- Bolt Force Measurement
- Material Testing
- Press Calibration
- Weighing hanging load , suspended load
- Rock Bolts
- Civil Engineering Testing
- Injection Molding Machine
- Tablet Manufacturing Machine
- Robotics & Industrial Automation
- Tensile force for prestressed concrete suspension weighing
- Pulling force measurement
Key Features
- CE Rated 5Tf to 500Tf capacities are offered.
- Complete environmental protection for gage area is provided for IP-65 protection class.
- Standard output of 2mV/V is provided.
- Optionally can be offered in Stainless Steel 17-4 ph grade.
- Other capacities can be customized as per requirements.
Technical Specifications
STANDARD CAPACITY
5, 7.5, 10, 15, 20, 30, 50, 100, 150, 200,
300, 500 TF.
PERFORMANCE
PERFORMANCE
Non- Linearity
Hysteresis
Non-Repeatability
Creep(30minutes)
ZeroBalance
< ±0.5% FSO (from 5% to 100% range)
< ±0.25% FSO
< ±0.10% FSO
< ±0.3% FSO
±1.0% FSO
ELECTRICAL
ELECTRICAL
Nominal Output
Excitation Voltage
Input Resistance
Output Resistance
Cable Length
Insulation Resistance(50VDC)
10 VDC- Maximum 15 VDC
770 ± 20 Ohms
700 ± 3 Ohms
5 meters
> 1000 Mega Ohms
2.0 m V/ V
STRUCTURE
STRUCTURE
Ultimate Overload of Rated Capacity
Safe Overload of Rated Capacity
Safe Overload of Rated Capacity
Deflection
Environmental Protection Class
200% of Rated Capacity
150% of Rated Capacity
50%
< 0.4 mm at FSO
IP 65
TEMP.
TEMP.
Compensated
Temperature
Temperature
Effect Output
Temperature
Effect Zero
0-60 °C
< 0.0025% FSO/ °C
< 0.0030% FSO/ °C
OPTIONS
OPTIONS
Digital Version
Compatible Instrument
Digital Output
DLC-6M, DLC-6, Jumbo Display
