TTS-SS-MINI

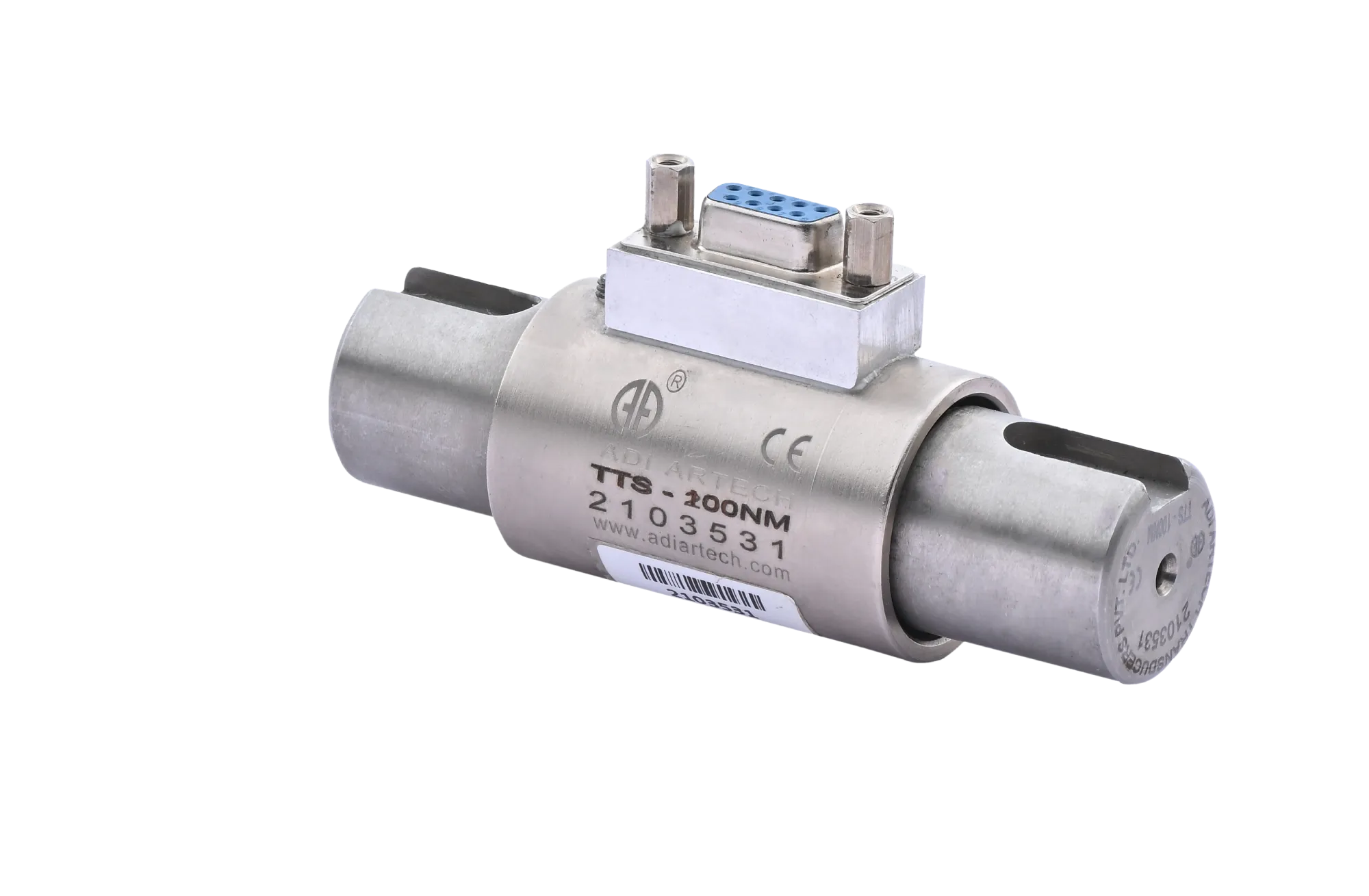

DUAL AXIS TORQUE CUM THRUST SENSOR - SHAFT ENDS TORQUE SENSOR
Load Direction
- Compression Only
- Clock & Anti clock Wise
Capacity
- 0-1 NM & 2 KN
- 0-2 NM & 3 KN
- 0-3 NM & 4 KN
- 0-5 NM & 6 KN
- 0-10 NM & 9 KN
- 0-20 NM & 20 KN
- 0-30 NM & 25 KN
Description
- TTS-SS-MINI - TORQUE CUM THRUST sensor is dual axis sensor. It is capable to measure torque and thrust in the system. Its stainless steel construction helps to performance in harsh application environments.
Application
- Fastener Strength Testing
- Torque in Bearing Friction
- Torque Measurement in Automotive & Aerospace
- Torque in Automobile Testing of Drive Shaft & Crank Shaft
- Torque in Electric,Hydrolic,Pneumatic Motors
- Torque Measurement in Industrial Valves & Actuators
Key Features
- This dual axis sensor is available in wide range of torque - 0 to 30 NM and thrust 0 to 25KN.
- It meets to IP-65 protection class for environment.
Technical Specifications
STANDARD CAPACITY
1 ,2 ,3 ,5 ,10 ,20 ,30 – NM.
2 ,3 , 4 , 6 ,9 ,20 , 25 – KN.
PERFORMANCE
PERFORMANCE
Non- Linearity
Hysteresis
Non-Repeatability
Creep(30minutes)
ZeroBalance
< ±0.1% Full Scale Output(FSO)
< ±0.1% FSO
< ±0.01%FSO
< ±0.03%FSO
±1.0%FSO
ELECTRICAL
ELECTRICAL
Output
Excitation Voltage
Input Resistance
Output Resistance
Insulation Resistance
10VDC-Maximum15VDC
392 ±15Ω (Ohms)
350 ±3Ω(Ohms)
(50 VDC) > 1000 Mega Ω (Ohms)
3.00 mV/V±0. 05%:20210
(Customized Output ailable on request)
STRUCTURE
STRUCTURE
Safe Overload
Of Rated Capacity
Ultimate Overload
of Rated Capacity
Allowable Side Load
Deflection
Finish Product
IP Rating
150%
250%
50%
< 0.4mmatFSO
Aluminum Alloy / SS 17-4 ph
IP65
TEMP.
TEMP.
Operating
Temperature
Compensated
Temperature
Temperature
Effect Output
Temperature
Effect Zero
0ºC to 60ºC
10ºC to 50ºC
< 0.0015%FSO/ ºC
< 0.0020%FSO/ ºC
OPTIONS
OPTIONS
Digital Version
Compatible Instrument
Digital Output
DLC-6M, DLC-6
Industries
