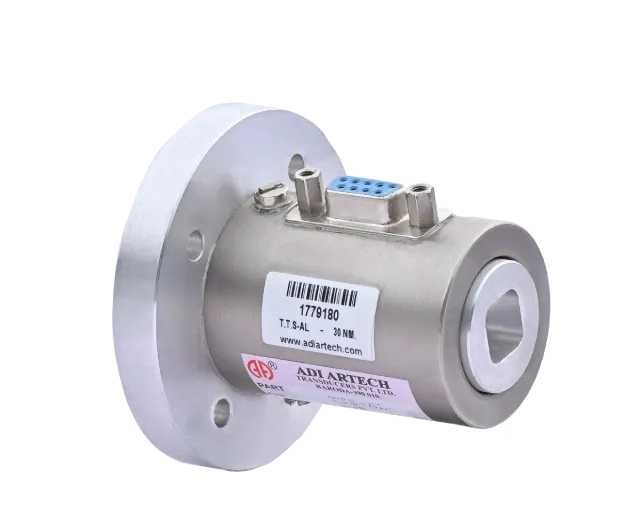

TTS-F-SQD-MINI
Static Reaction Torque Transducer
Capacity
- 0 - 1 NM to 0 – 30NM
Load Direction
- Clock & Anti clock Wise
Description
- This is static reaction torque transducer – CE Certified, flange mount with female SQ Drive at loading end. It is designed for industrial and research applications. It is constructed from Aluminum Alloy for light weight and handy operations. TTS-F-SQ-F is strain gage based sensor with full temperature compensation over 10 to 50C. It is compensated for axial and side loads for very good linearity and low hysteresis. It is very compact and easy to install into the applications. It is available from 0 - 1 NM to 0 – 30NM capacities to cover vide industrial applications. It is suitable for clock wise and anti-clock wise directions. This sensor can be supplied with factory calibrated instrument with display, computer interface etc.
Application
- Actuator/valve/electrical tool testing
- Axle/shaft torsion test
- Bearing friction measuring
- Testing of starters/slip rings/brushes/clutches/brakes
- Electric/hydraulic/pneumatic motors testing
- Alternators/pumps/gas, diesel, turbine engines testing
- Automobile testing of drive shaft and crank shaft torque
- Defense, Aerospace, R&D Establishments, Offshore test rigs, Automotive, Machine tools, Electrical and Engineering Industries.
Key Features
- CE Rated
- Very compact and rugged for heavy duty applications.
- Compensated for axial and bending moments for good accuracy.
- Gage area is sealed for IP 65 degree of environmental class.
- Can be supplied as per customers required size and capacity.
- Both end shaft or one end shaft and other end flange type also can be supplied
Technical Specifications
STANDARD CAPACITY
0 – 1 NM to 0 – 30NM
PERFORMANCE
PERFORMANCE
Non- Linearity
Hysteresis
Non-Repeatability
Creep(30minutes)
ZeroBalance
< ±0.5% FSO
< ±0.2% FSO
< ±0.1% FSO
< ±0.03% FSO
±1.0% FSO
ELECTRICAL
ELECTRICAL
Nominal Output
Excitation Voltage
Input Resistance
Output Resistance
Insulation Resistance(50VDC)
Cable Length (4 Core Screened)
10 VDC- Maximum 15 VDC
392 ± 15 Ohms
350 ± 3 Ohms
> 1000 Mega Ohms(50 VDC)
3 meters
2.0 m V/ V
STRUCTURE
STRUCTURE
Safe Overload of Rated Capacity
Ultimate Overload of Rated Capacity
Allowable Side Load
Deflection
Finish & Construction
Environmental Protection Class
150%
200%
50%
< 0.4 mm at FSO
Aluminum Alloy
IP 65
TEMP.
TEMP.
Temp. Compensated Range
Temperature
Effect Output
Temperature
Effect Zero
10 to 50 °C
< 0.015% FSO/ °C
< 0.020% FSO/ °C
OPTIONS
OPTIONS
Compatible Instrument
DLC-6M, DLC-6
